40" x 20" x 20" Fadal Model VMC4020HT Vertical Machining Center
Have one to sell?
ConditionUsed
1 available
Fadal CNC 88

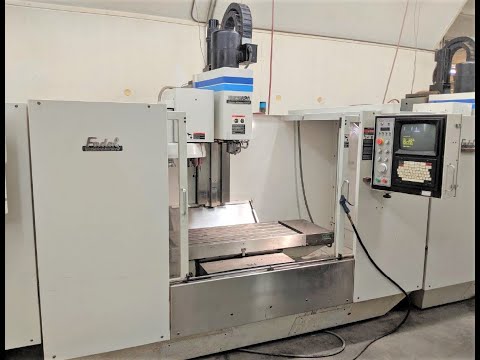

Fadal Model VMC4020HT 3 Axis Vertical Machining Center
Table size: 48" x 20"
Cutting feed rate: (x/y/z)0.01-.400 ipm
Rapid traverse: (x/y/z) 900 ipm/ 700 ipm
Max. weight on table: 3641 lbs
Travels (x): 40"
Travels (y): 20"
Travels (z): 20"
Spindle nose to table: 4" to 24"
Spindle center to column ways: 20"
Spindle speeds: 10 - 10,000 rpm
Spindle taper: CT 40
Atc number of tools: 24
Spindle drive motor: 22.5 HP
Current Electrical Arrangement: 220/600/3
