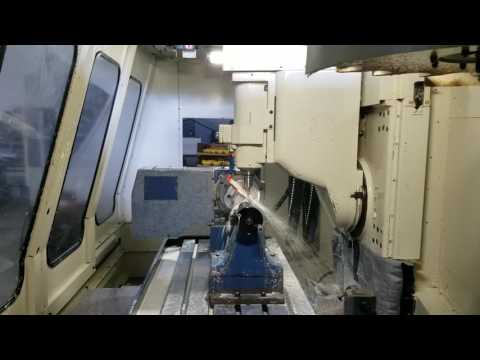

Bostomatic Model BD 605 5 Axis CNC Vertical Machining Center

Bostomatic Model BD 605 5 Axis CNC Vertical Machining Center
Preliminary Specifications
Table Load Capacity:
X-Axis Travel: 40.10"
Y-Axis Travel: 22.05"
Z-Axis Travel: 22.05"
B-Axis : Spindle-head rotation (pivot) around Y-axis: -10
Degrees (CCW) to +190 Degrees (CW).
Spindle Taper: HSK 63A
Main Motor Drive: 10/13 HP
Spindle Speeds: 8000 RPM
Equipped with:
Bostomatic CNC Control
Nikken 250LF Rotary Table
High Pressure Coolant Thru Spindle
MistBuster Hood and Mist Collector
Marposs Tool Setter
Machine Comes with 2 New Spindles and Draw Bars
Glass Scales on X and Y Axes
Approximately 7,000 Hours on Machine
Note: The B-Axis can rotate below center line in both directions
The B-axis can also move below center line of the A-axis
