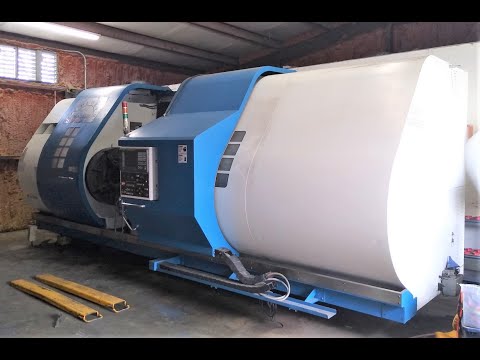

40" chuck Vantage Explorer SA45-V22/2200 Big Bore CNC Lathe (2006)

VANTAGE Explorer SA45-V22/2200 Big Bore Cnc Lathe

Swing Over Bed 45"
Swing Over Cross Slide 39"
Maximum Cutting Diameter 45"
Distance between Centers 86"
Spindle Nose A2-28
Spindle Bore 21.06"
Spindle Taper 1/10
Spindle Speeds 8 to 300 Rpm
No. of Tool Stations 12
Tool Shank Diameter 4"
Rapid Travel Speeds: X-Axis 8 M/Min
Z-Axis 10 M/Min
Tailstock Spindle Travel 7.87"
Tailstock Spindle Taper MT #6
Spindle Motor 50/60 Hp
Machine Weight, Approx. 38,500 Lbs.
Equipped With:

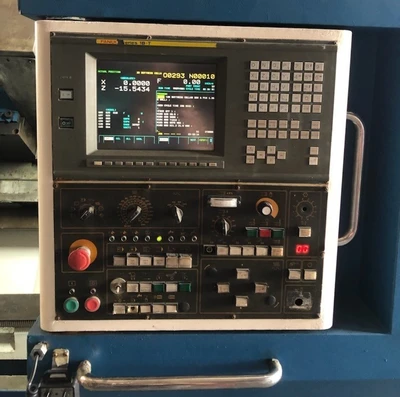

Fanuc 18T Cnc Control
40" 4-Jaw Chuck
Tailstock
