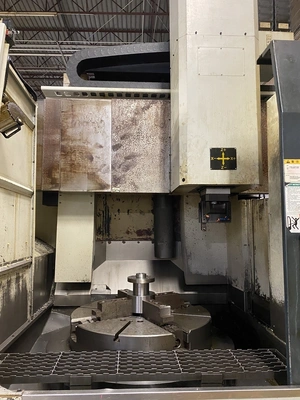

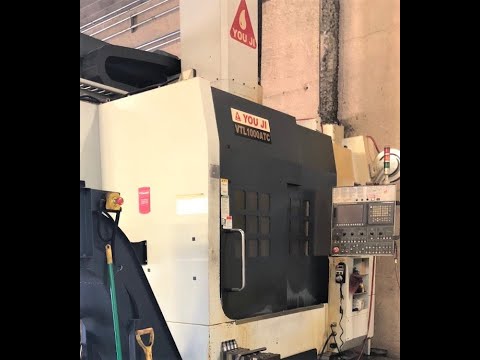

39" YOU JI VTL-1000ATC CNC Vertical Turning Center (2012)

39" Youji VTL-1000ATC CNC Vertical Turning Center

Table diameter: 39.37"
Max swing: 53.15"
Max cutting diameter: 43.3"
Max cutting height: 35.43"
Travel:
Max load table: 8,818.5 lbs
Horizontal travel of rail head (x-axis): 44.09"
Vertical travel of ram (z-axis): 31.50"
Spindle:
Table Speed:
Low: 2-160 RPM
High: 160-600 RPM
Max table torque: 898.0 kgf-m
Feeder rate:
Rapid traverse of rail head (x-axis) .. 39.4 ft/min
Rapid traverse of ram (z-axis) . 32.8 ft/min
Cutting feed rate .. 0.04-78.8 in/min
Manual feeder rate . 0.04 - 0.40
Tooling:
Turret (STC) type . 12 tools
Type of tool shank.. 7/24 taper BT-50
Max. of tool size for automatic tool changing:
Width: 11.02"
Height: 5.91
Length: 15.75"
Max tool weight: 110.2 lbs
Max loading of ATC: 793.7 lbs
Tool change time (ATC): 40.0 seconds
Motors:
Spindle drive motor: 50 HP
x-axis servo motor: 7 (30i)
z-axis servo motor: 9 (40i)
Coolant motor: 0.24 hp
Tank capacity:
Hydraulic tank: 17.2 gal
Cooland tank (square): 198.1 gal
Lube tank (sideways): 1.2 gal
Power sources:
Power capacity: 80 KVA
Floor dimensions: 149.6 x 173.23
Machine weight: 44,092.5 lbs
