37"/50" x 210" Meuser Geared Head Gap Bed Engine Lathe
Have one to sell?
ConditionUsed
1 available

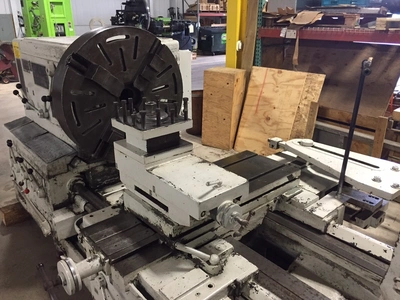

36" 4 Jaw Chuck, Taper Attachment, (2) Steady Rests, Video Available

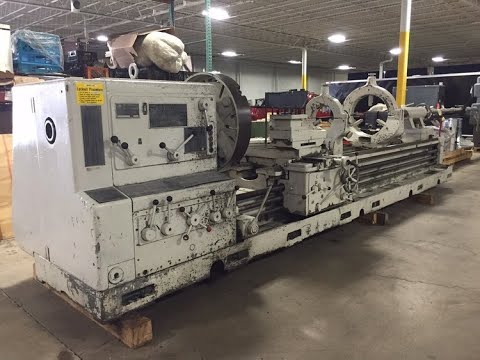

Meuser 37"/50" x 210" Geared Head Gap Bed Engine Lathe
Specifications (Preliminary)
Swing over Bedways: 37"
Swing in Gap: 50"
Swing Over Cross Slide: 22"
Gap Length: 16"
Gap Width: 20 1/8"
Distance between centers: 210"
Threads Inch: 0.0016 - 0.1322 TPI
Threads Metric: 0.042 - 3.36
Spindle speeds: 20 - 900 RPM
Spindle Bore: 4"
Current Electrical Arrangement: 220/240/3 phase
35.25" 4 Jaw Chuck
Taper Attachment
Four Way Tool Post
Heavy Duty Tailstock
23 1/8" 3 Point Roller Bearing Steady Rest
12 3/16" Capacity 3 Point Steady Rest
