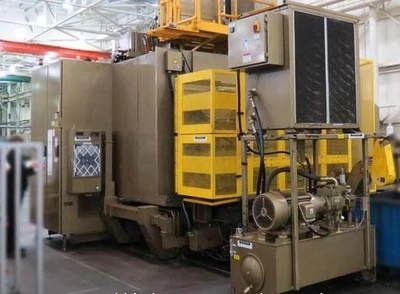

31.5" x 31.5" pallet Cincinnati Milacron Model T-35 5-Axis CNC Horizontal Machining Center (1994)
Have one to sell?
ConditionUsed
1 available
5 Axis, 50 Taper, (2) 31.5" x 31.5" Pallet, Acramat5ic 950 CNC Control
Cincinnati Milacron Model T-35 5-Axis CNC Horizontal Machining Center
Pallet Size: 31.5" X 31.5" (2-Pallet)
Pallet Indexing: .001 (360,000)
X-Axis Travel: 60"
Y-Axis Travel: 60"
Z-Axis Travel: 62"
Spindle Taper: No 50 ANSI V Flange
Spindle Speed: 4,000 RPM
Tool Capacity: 130 ATC
Acramatic 950 CNC Control
Simultaneous 5-Axis Motion Control
Torque Controlled Machining
Tool Length Measuring Probe
Renishaw Probe
Through Spindle Coolant
Linear Scales on X,Y,Z
AC Servos on All Axes and Spindle
BCL Direct Binary Code Exchange Feature (No Post Processor Required)
9800 Spindle Run Hours
75,000 Feet of Tape Program Storage (9 Megs)
