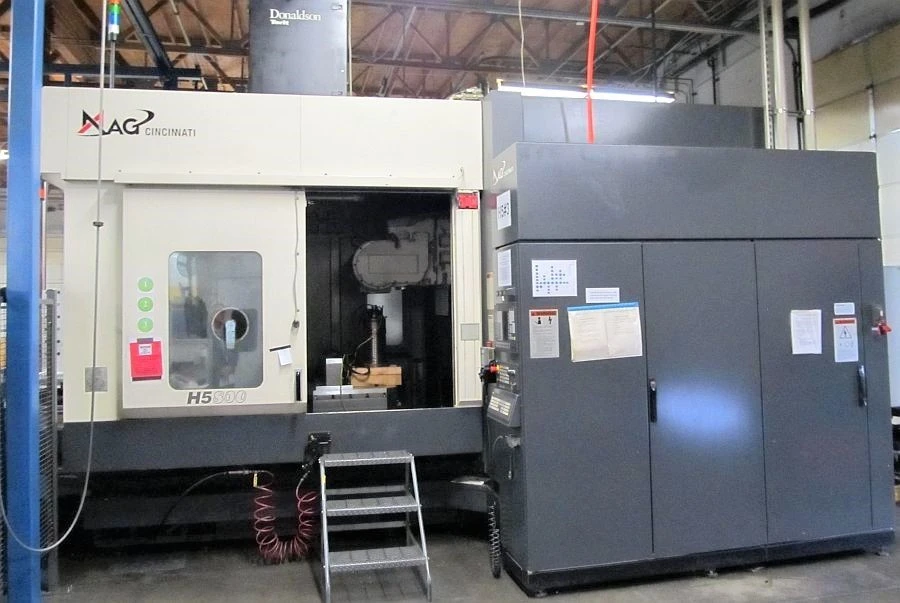

31.5" x 31.5" Cincinnati Magnum H5-800AP 5 Axis High Speed Machining Center (2006)

Cincinnati Magnum H5-800AP 5 Axis High Speed Machining Center (2006)

5 Axis, 20000 RPM, 6 Pallet, Siemens Acramatic 2100 Control
Specifications and Equipment
X-Axis Travel: 61" Y-Axis Travel: 47.8" Z-Axis Travel: 47.2" Spindle
(A-Axis): +60 to -120 Deg Pallet Rotation (B-Axis): 360,000 Pos. Pallet
Dimensions: 31.5" x 31.5" Number of Pallets: 6 Rapid
Traverse, All Axes: 945 IPM Spindle Horsepower: 40 HP Spindle Speed
Range: 100-24,000 RPM Spindle Taper: HSK 63 Number of Tool Positions: 90
Equipped With: Siemens Acramatic 2100 Control Chip Conveyor Through
Spindle Coolant Full Contouring 4th-Axis Pallet Rotation Full Contouring
4th-Axis Pallet Rotation Full Contouring 5th-Axis Spindle Tilt
