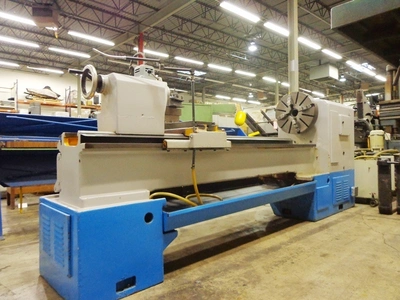

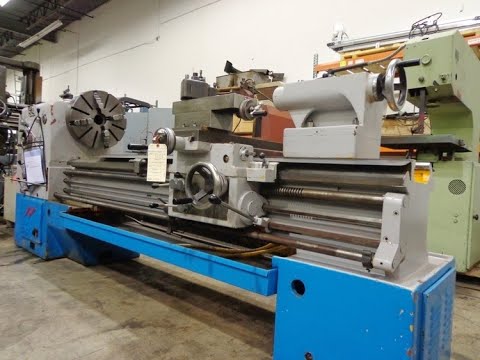

Giana Model 3280 Gap Bed Engine Lathe
Lathes-Engine26" Swing, 80" Centers, 1280 RPM, 3.0" Bore, tailstock
size | 26" x 80" |
Swing | 26" |
Centers | 80" |
Spindle Bore | 3.125" |
Power | 12 hp |
RPM | 1,700 RPM |
Swing Over Cross Slide | 16" |
Giana 26/30" x 80" Geared Head Gap Bed Engine Lathe
Swing Over Bed on ways 26"
Swing In Gap (permanent gap) 30"
Swing Over Cross Slide 16"
Distance Between Centers 80"
Gap Length, approx. 10"
Spindle Thru Hole 3-1/8"
Spindle Mount D1-8 Camlock
Spindle Speeds (18) 17 to 1700 R.P.M.
Threading 1 - 60 MM (Metric)
1-60 TPI (English)
Motor 12 H.P.
Current Electrics 575/3/60
19-1/2" 4-jaw Chuck
Inch & Metric Threading
Enco E4 Quick Change Tool Post
One-Shot Lubrication
Carriage Stop
Oil Pan Bed
Permanent Gap in Bed
