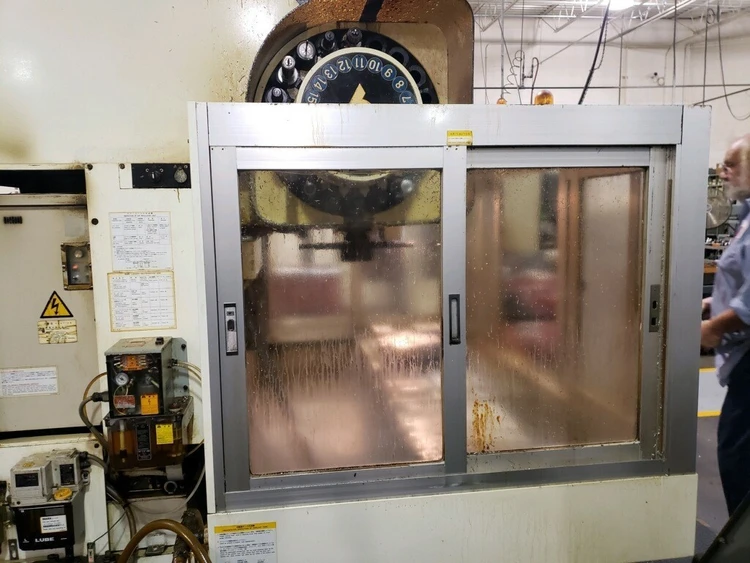

30" x 17" x 18" Kitamura Mycenter 3X Vertical Machining Center (1997)
Have one to sell?
ConditionUsed
1 available
3 Axis, 10,000 RPM, CAT40, Yasnac CNC Control
Kitamura Model Mycenter 3X 3 Axis Vertical Machining Center
Travel, X (Long.): 30"
Travel, Y (Cross): 17.9"
Travel, Z (Vert.): 18"
Table size: 16.1" x 35.4"
Spindle speeds: 20-10,000 RPM
Spindle Taper: 40 CAT
No. of Ranges: 2
ATC type: 20 (side mount)
CNC control: Yasnac
Rapids: X,Y 1181, Z 945 ipm
Main Motor Drive: 15hp
Yasnac Cnc Control With 9 Crt
Chip Conveyor
RS-232c Port Interface For Dnc Operation
Gearbox Spindle (2 Speed)
Side-Mount Swing-Arm Tool Changer
Rigid Tapping (Synchronous / Solid Tapping)
Fully Enclosed Splash Guarding
Work Light
All Available Manuals
