| size | 20" X 13" | 20" X 13" |
| X Travel | 20" | 508 mm |
| Y Travel | 13" | 330.2 mm |
| Z Travel | 18" | 457.2 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 150,000 RPM | 150,000 RPM |
| # ATC | 30 | 30 |
| Taper | 40 | 40 |
| Table-W | 19" | 482.6 mm |
| Table-L | 30" | 762 mm |
| # Axis | 3 | 3 |

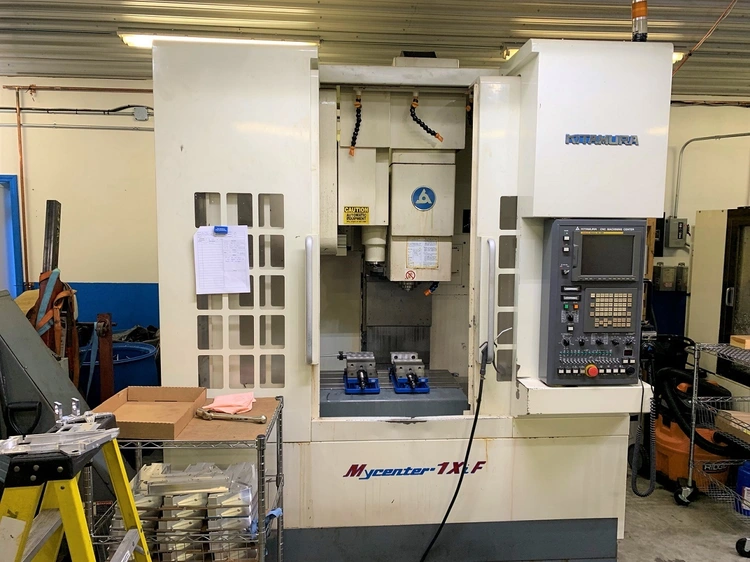

Kitamura Model Mycenter 1Xif 3-Axis CNC Vertical Machining Center
Table Size: 30.9" X 13.9"
Table Load Capacity: 592 lbs
X-Axis Travel: 20.07"
Y-Axis Travel: 13.97"
Z-Axis Travel: 18.11"
Spindle Speeds: 15,000 RPM
Spindle Taper: BT30
Tool Positions: BT 30
Main Motor Drive: 10 HP
Status: Climate Controlled Environment, Under Power
Utilization: 9416 Cut Hours
Fanuc 16 i-MB
Through Spindle Coolant (300 PSI)
Brand new Spindle Drive
Spindle Chiller
All Available Manuals
