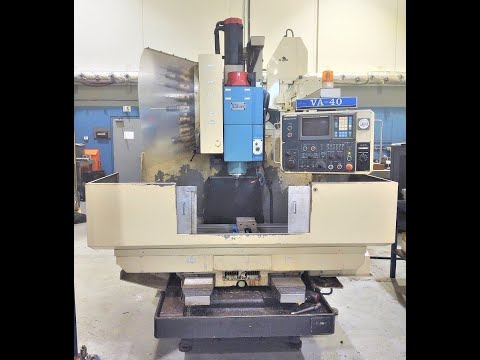

28" x 16" x 18" KIA VA40 Vertical Machining Center

28" x 16" x 18" KIA VA40 Vertical Machining Center

Have one to sell?
773.866.9600
sales@assetexchangeinc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Machining Centers, Vertical
Manufacturer:
KIA
Model:
V40 VERT MACHINING CENTER
Stock #:
67653
Status:
For Sale

Description

24 Position Tool Changer, Misc Tolling, Fanuc 0M CNC

size28" x 16"28" x 16"
X Travel28"711.2 mm
Y Travel16"406.4 mm
Z Travel18"457.2 mm
Power7.5 hp5.6 kW
RPM6,000 RPM6,000 RPM
# ATC2424
Taper4040
Table-W15"381 mm
Table-L49"1,244.6 mm
# Axis33
ControlCNC (Fanuc 0M)CNC (Fanuc 0M)
Dimensions108x084x108108x084x108
Weight1200012000

28" x 16" x 18" KIA VA40 Vertical Machining Center

Table Working Surface: 15.7" x 49.2"
X Axis Travel: 28"
Y Axis Travel: 16"
Z Axis Travel: 18"
Spindle Taper: 40
Spindle Speeds: 45 - 6,000 RPM
ATC Tool Positions: 24
Main Motor Drive: 7.5 HP
Video: https://youtu.be/Eo26VXzcVQI
Equipped With:
Fanuc 0M CNC Control, 25 Position Side Mount Toolchanger

Fanuc 0M CNC Control, 25 Position Side Mount Toolchanger
