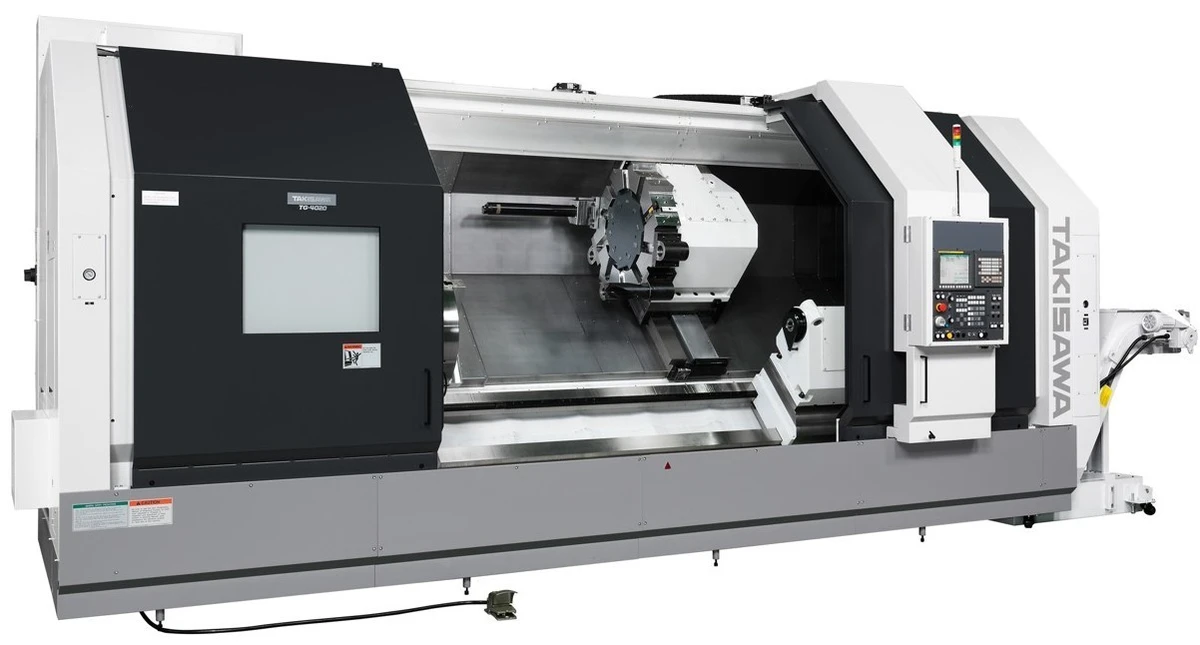

28" chuck Takisawa Model TG-4030-C 37" x 131" 2-Axis Big Bore CNC Universal Lathe (2017)

Takisawa Model TG-4030-C 2-Axis CNC Universal Lathe
Specifications:
Swing Over Bed: 37.036"
Maximum Distance Between Centers: 131"
Max Turning Diameter: 27.9"
Spindle Bore: 10.83"
Spindle Speeds: 0 to 750 Rpm
Spindle Nose: A2-20
X-Axis Travel: 14.3"
Z-Axis Travel: 131.5"
Quill Travel: 7"
Taper: #6 Mt
Turret Positions: 10
Main Motor Drive: 50 Hp
Equipped with:
Fanuc 0iT-D CNC Control
RS-232 INterface
28" 3-Jaw Hydraulic Chuck
Tailstock with Programmable Quill
Chip Conveyor
Misc. Tooling Package
Flood Coolant System
Full Coolant Enclosure
Slant Bed Contruction
Hydraulic System
Chuck Open/Close Foot Switch
Hydraulic Cooling System
Direct Gearbox System
FEM Analysed Qualified Grey Cast Iron
