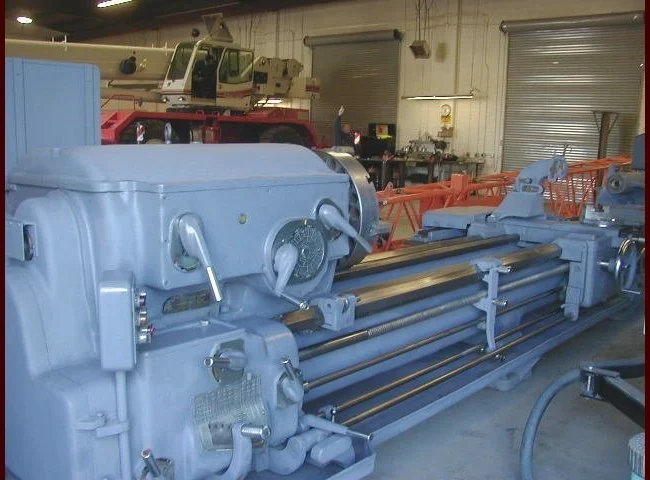

27" x 181" Sidney Geared Head Engine Lathe
Have one to sell?
ConditionUsed
1 available
Taper Attachment, Steady Rest, Follow Rest, 21" 4 Jaw Chuck
Sidney 27" x 181" Geared Head Engine Lathe
Swing over bed: 27"
Swing over cross slide: 20"
Maximum distance between centers: 181"
Spindle nose: D1-11
Spindle bore: 2-1/16"
Spindle speeds: (16) 8 to 550 RPM
Tailstock taper: #5
Feeds: (60) to 46 IPR
Main motor: 30 HP 220/440V
Approximate dimension 27L X 6W X 5-1/2 H
Approximate weight 19,000
Equipped With
21 4 jaw chuck, steel Cushman
24 face plate
Taper attachment and bed clamp
2 each steady rests, 10 & 18.5
Follower rest
Coolant pump
Micrometer bed stop
Chip pan
