| size | 24" x 120 | 24" x 120 |

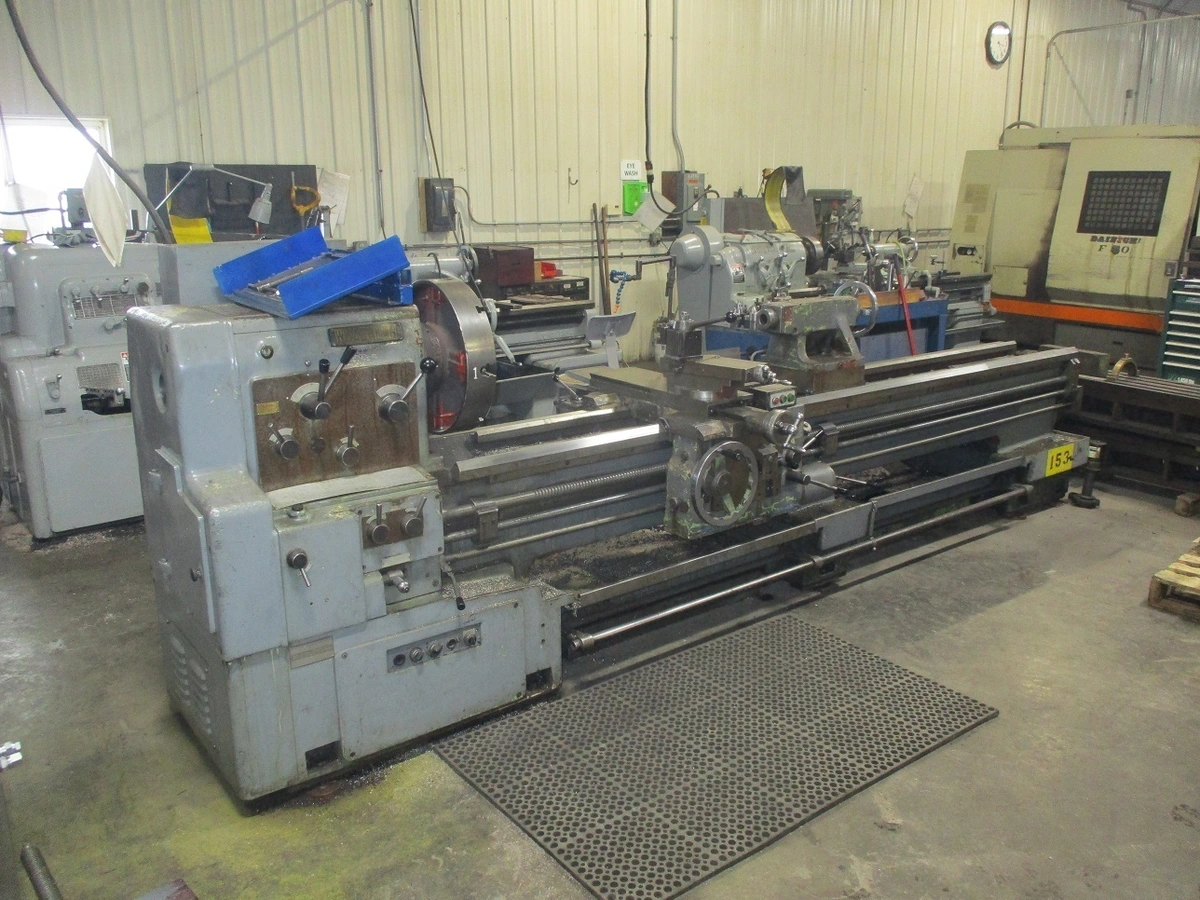

Whacheon Model WL-630 24" x 120" Geared Head Engine Lathe
Swing Over Bed: 24.75"
Swing Over Cross Slide: 16.25"
Swing Over Gap: 33.25"
Distance Between Centers; 120"
Cross Slide Travel: 14.16"
Width of Bed: 18.12"
Length of Bed: 171.25"
Tailstock Taper: MT #5
Spindle Nose: ASA A 1-8
Spindle Through Hole: 3"
Taper of Spindle Bore: MT 7
Spindle Speeds: 27-1205 RPM
Number of Spindle Speeds: 12
Inch Threads: 2-80 TPI
Metric Threads: 0.5-14mm Pitch
Main Motor: 15 HP
This equipment has been sold. Similar equipment available now is shown below.
