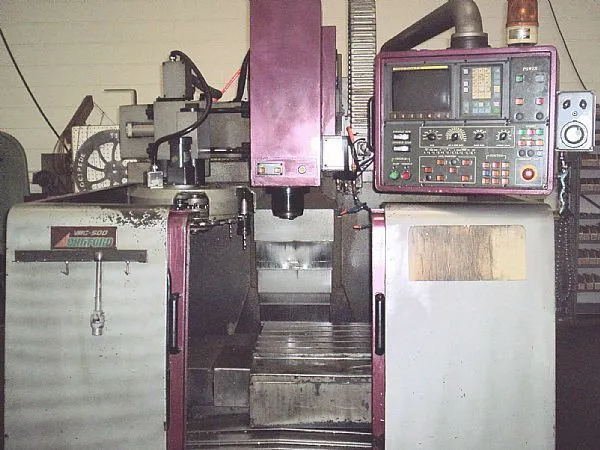

JOHNFORD VMC-500 Vertical Machining Center

Johnford Model VMC-500 3 Axis Vertical Machining Center
Table Size 35.4 x 16.1
Floor Space 101.3 x 109
Machine Height from Machine Base 106 appx
Total Power Required, machine only 30 kva
Machine Weight 6,600 lbs
X-Axis Travel 24.05
Y-Axis Travel 16.14
Z-Axis Travel 14.08
Distance from Spindle C/L to Column 18.0
Table Height 29.53
Spindle Nose BT40
Spindle Speed 30-4500 rpm
Spindle Spree Increments 1 rpm
Number of Spindle Ranges 1
Spindle Horsepower Max Rating 15 hp
X,Y,&Z Axis Rapid Traverse 787/590 IPM
Magazine Capacity 16 tools
Chip-to-chip Tool Changer Time 4 seconds
Method of Tool Selection Random
