VIPER VT-40BMx2000

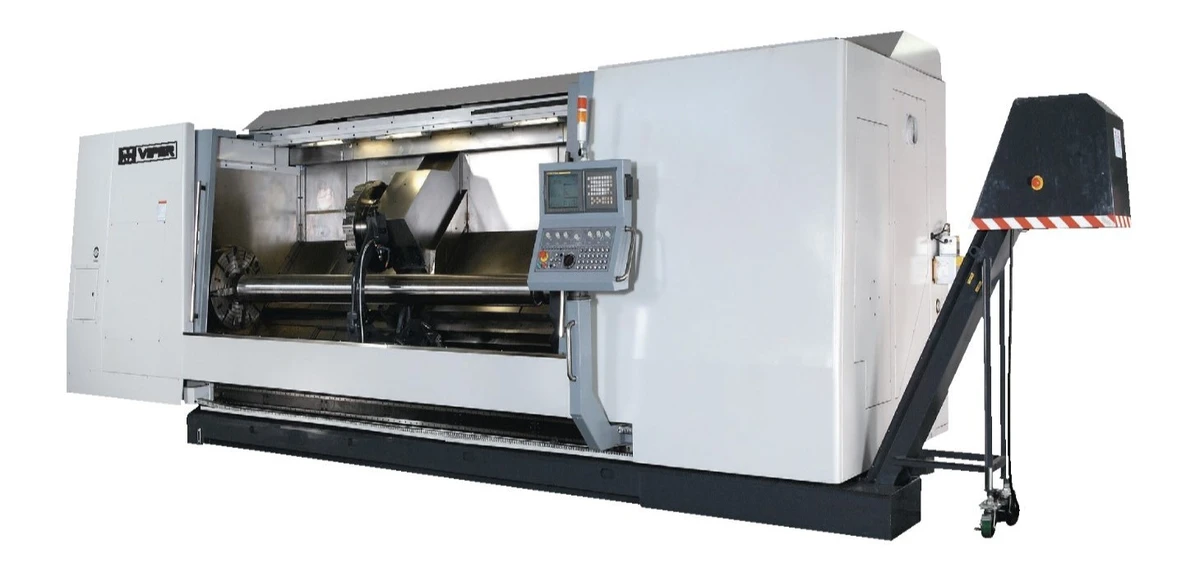

Mighty Viper VT-40BMx2000 Cnc Turning Center
Specifications:
Swing Over Z-Way Cover 39.37"
Max. Turning Diameter 31.29"
Swing Over Cross Slide 29.1"
Max. Turning Length 77.17"
Slideway Slant Angle 45 Degree
X-Axis Travel 17.72"
Z-Axis Travel 78.74"
Spindle Nose ISO A2-15
Bar Capacity 9.4"
Chuck Size 24"
Spindle Drive Motor 60 Hp
Spindle Speed Range Up to 574 Rpm
No. Of Turret Stations 12
Turret Type Star Type VDI-60 Live Turret
Turret Index Time 1 Second
Feed Rate, X-Axis 590 Ipm
Feed Rate, Z-Axis 630 Ipm
Tailstock Travel 78.7"
Tailstock Spindle Dia. 5.9"
Tailstock Spindle Travel 5.9"
Taper Hole of Tailstock Spindle MT-6
Machine Weight 36,000 Lbs
Power Requirements 60 Kva
