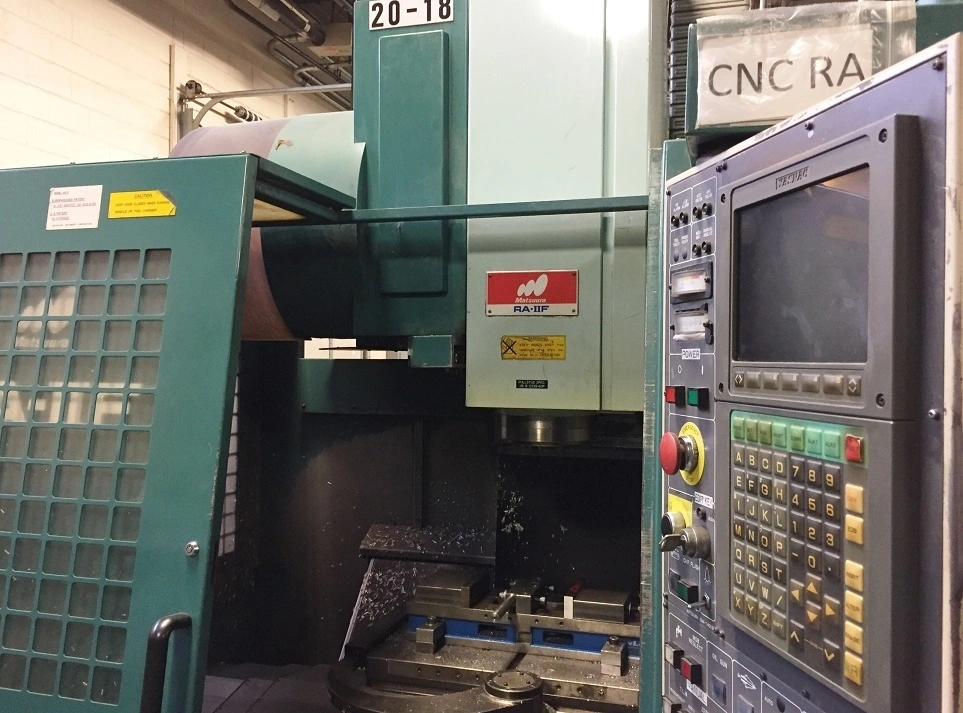

23" x 16" x 18" Matsuura Model RA-IIF 3-Axis Dual Pallet CNC Vertical Machining Center (1993)

Matsuura Model RA-IIF 3-Axis Dual Pallet CNC Vertical Machining Center
Pallet Size: 23.6" x 14.9" (2) Pallet
Pallet Load Capacity: 550 lbs
X-Axis Travel: 23.6"
Y-Axis Travel: 16.1"
Z-Axis Travel: 18.5"
Tool Capacity: 30 ATC (Side Mount)
Spindle Taper: 40 Taper
Spindle Speed: 8,000 RPM
Main Motor: 10 HP
X,Y &Z Rapid Traverse: 590, 590, &472 In/Min
Feed Rate:0.1" - 196"
Jog Rate: 0 - 157"
Max. Tool Diameter: 3.15"
Max. Tool Length: 11.8"
Max. Tool Weight: 17.6 lbs
Tool change Time: 1.8 Sec.
Equipped with:
Yasnac I-80 CNC Control
Chip Conveyor
Manual Pulse Generator
