20" x 15" x 18" Matsuura Model RA-1F Twin Pallet CNC Vertical Machining Center (1996)

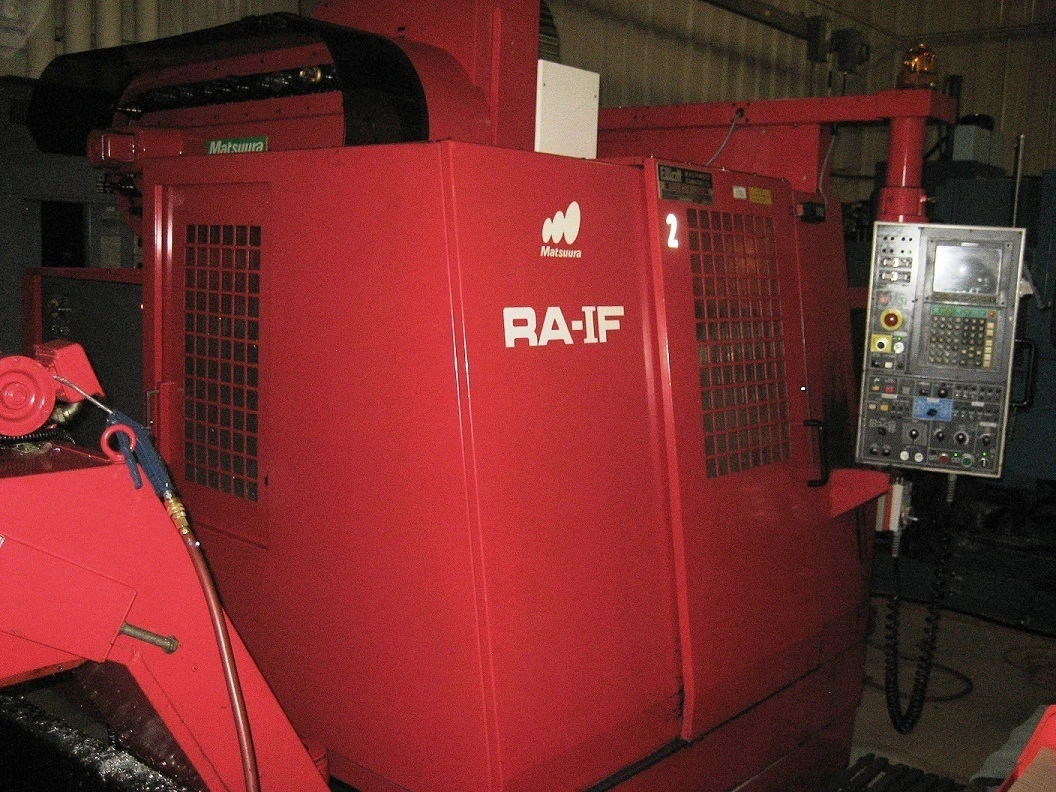

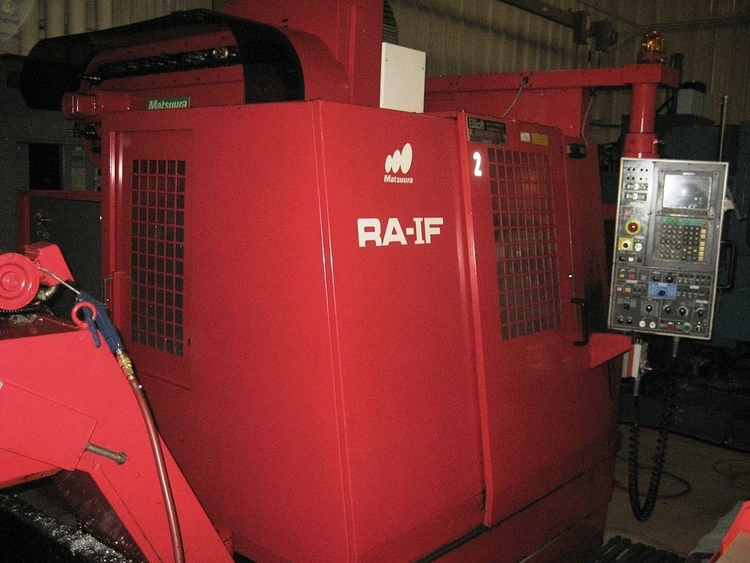

Matsuura Model RA-1F Twin Pallet CNC Vertical Machining Center
Table Size: 23.6" x 14.9"
Table Load Capacity: 550 lbs
X-Axis Travel: 20.8"
Y-Axis Travel: 15.7"
Z-Axis Travel: 18.1"
Spindle Taper: BT 40
Spindle Speed: 8,000 RPM
Spindle Motor: 7.5 HP / 5 HP
Tool Magazine Capacity: 30 ATC
Rapid Traverse Rates X, Y / Z: 1181 IPM/945 IPM
Machine Dimensions: 148" x 123" x 107"
Machine Weight: 9,834 lbs.
Equipped with:
Yasnac I-80 CNC Control
Chip Conveyor
Twin Pallet Changer
2 MB Extended Memory
Coolant Tank
**** A second Identical Machine is Also Available ****
