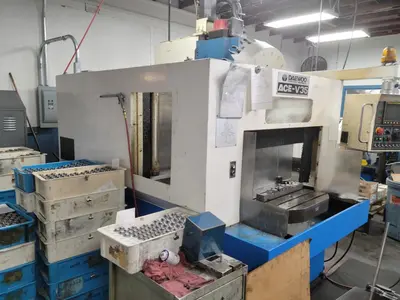

22" X 15" X 18" Daewoo Ace-V35 (2) Pallet Vertical Machining Center (1995)

Daewoo Model Ace-V35 Rotating (2) Pallet Vertical Machining Center
Table Size: 17.70" X 20.60" (2) Pallet
Table Load Capacity: 660 lbs
X-Axis Travel: 22"
Y-Axis Travel: 15.70"
Z-Axis Travel: 18"
Spindle Speeds: 60 - 7000 RPM
Spindle Taper: 40 CAT
Tool Capacity: 16 ATC
Main Motor: 10 HP
Current Electrical Arrangement: 220/3/60
Equipped with:
Fanuc 0M CNC
16 Position Automatic Tool Changer
(2) Pallet (Rotating Pallet)
Floppy Drive
Rs232 Port
All Manuals
Turbo Chip Conveyor
7 Seconds Chip to Chip, 4.5 Seconds Tool to Tool
Tool Life Management
Tool Length Measure
Offset Option
No Coolant
Manual Pulse Generator
This machine was 5,000.00 when new
