CLAUSING 21" X 108" Engine Lathe
Have one to sell?
ConditionUsed
1 available
23" Swing, 108" Centers, 3.5: Bore

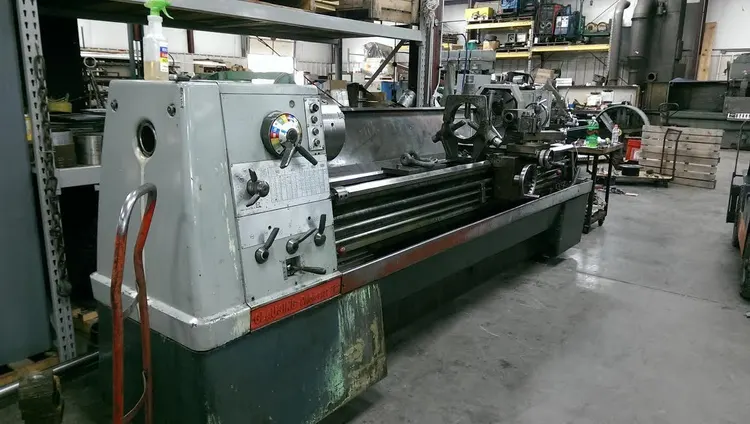

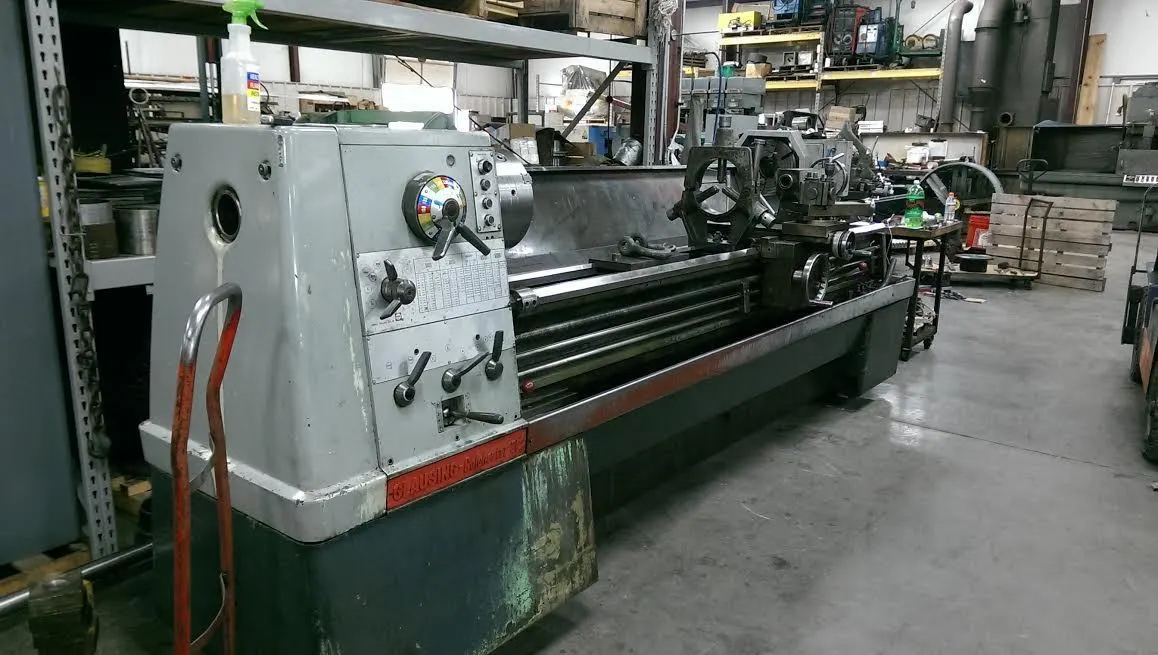

Clausing Colchester 21" X 108" Geared Head Gap Head Engine Lathe
Max Swing Over Bedways: 23"
Max Swing in Gap: 32"
Swing Over Cross Slide: 14"
Bed Length: 130"
Gap Length: 14"
Spindle Nose: D1-11 Camlock
Spindle Bore: 3 9/16"
Spindle Speeds: 18-1400 RPM
Distance Between Centers: 108"
Longitudinal Feed Range: .002" - .032"
Cross Feeds: .001" 1 .016"
Threads: 2 - 72 TPI
12" 3-Jaw Chuck
Tool Post
3 Point Roller Bearing Steady Rest
Chuck Guard
Chip Pan
Inch Metric Threading
