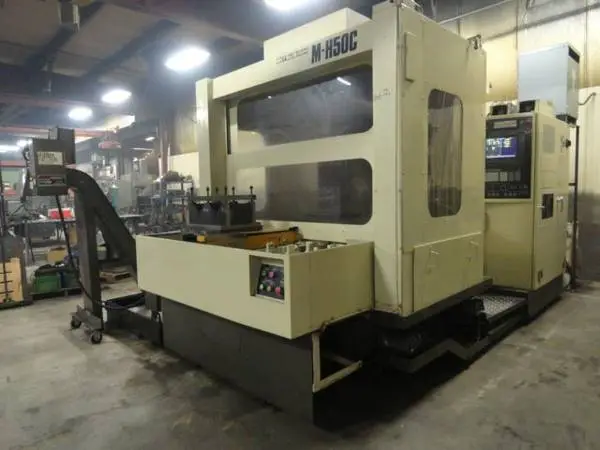

19.7" x 19.7" Mitsubishi Model M-H50C 3 Axis Horizontal Machining Center (1991)
Have one to sell?
ConditionUsed
1 available
3 Axis, 50 Taper, 40 Position ATC, 4000 RPM, Mitsubishi CNC Control
Mitsubishi Model M-H50C 3 Axis Horizontal Machining Center
Pallet Size: 19.7" x 19.7" (2)
X-Axis Travel: 28.4"
Y-Axis travel: 24.8"
Z-Axis Stroke: 24.8"
Table to Spindle Nose: 2" - 26.8"
Spindle Taper: 50
Spindle Diameter: 3.9"
Spindle Speed: 30- 4000 RPM
Tool Positions: 40
Main Motor Drive: 15 HP
Mitsubishi CNC Control
Flood Coolant and Tank
Chip Conveyor
RS232 Port
Tape Reader
End of Cut Flashing Indicating
3 Axis, 50 Taper, 40 Position ATC, 4000 RPM, Mitsubishi CNC Control
Imperial
| size | 20" x 20" |
| X | 29" |
| Y | 24" |
| Z | 24" |
| RPM | 4,000 RPM |
| # ATC | 40 |
| Taper | 50 |
| Pallet-W | 19.7" |
| Pallet-L | 19.7" |
| # Axis | 3 |
| Control | CNC (Mitsubishi CNC Control) |
Mitsubishi Model M-H50C 3 Axis Horizontal Machining Center
Pallet Size: 19.7" x 19.7" (2)
X-Axis Travel: 28.4"
Y-Axis travel: 24.8"
Z-Axis Stroke: 24.8"
Table to Spindle Nose: 2" - 26.8"
Spindle Taper: 50
Spindle Diameter: 3.9"
Spindle Speed: 30- 4000 RPM
Tool Positions: 40
Main Motor Drive: 15 HP
Mitsubishi CNC Control
Flood Coolant and Tank
Chip Conveyor
RS232 Port
Tape Reader
End of Cut Flashing Indicating
