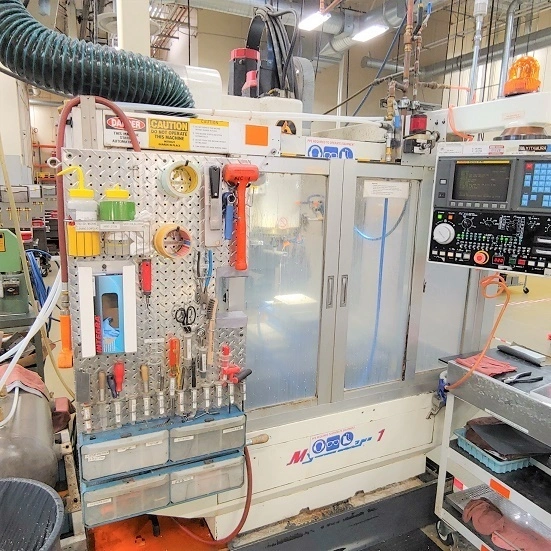

19" X 13" X 16" Kitamura Mycenter 1 Vertical Machining Center (1997)

Kitamura Model Mycenter 1 Vertical Machining Center

Table Size: 11.8" x 19.7".
X-Axis Table Travel: 20.1"
Y-Axis Saddle Travel: 14.0"
Z-Axis Spindle Head Travel: 15.9"
Spindle Nose To Table Top: 5.0" - 20"
Cutting Feed Rates: 0000004 - 591 IMP
Rapid Traverse Rate: 1417 IPM X,Y 1,181 IPM,Z Axis
Spindle Taper: 35
Spindle Speeds: 10,000 RPM
Spindle Drive Motor: 7.5 HP
Automatic Tool Changer: 20
Maximum Tool Diameter: 2.75"/3.94"
Maximum Tool Length: 9.8"
Chip To Chip Time: 3.2 SEC
Tool Change time: 1.2 SEC
Maximum Tool Weight: 8.8 LBS
Approximate Dimensions: 143.6" X 91.7" X
Machine Weight: 10,780 LBS
Equipped With:

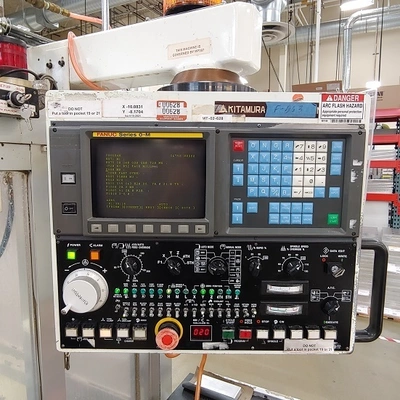

Fanuc 0M
Coolant System
