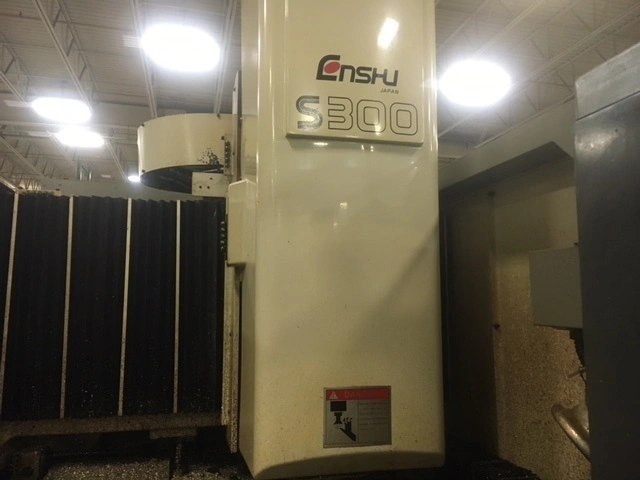

19" x 15" x 12" Enshu Model S300 3 Axis Dual Pallet Vertical Machining Center (1997)
Have one to sell?
ConditionUsed
1 available
Internal Pallet Changer, 30 Taper, 16 ATC, Yasnac J50 CNC
Enshu Model S300 3 Axis Dual Pallet Vertical Machining Center
Pallet Size: (2) 27.5" x 17.7"
Max. Pallet load: 330 LBS.
Travels
X-axis: 19.7"
Y-axis: 15.7"
Z-AXIS: 12.96"
Rapid Rates: 1417 IPM
Spindle Nose To Table Top: 4.7" x 16.5"
Spindle Speeds: 120 - 10,000 RPM
Spindle Taper: BT 30
Main Motor Drive: 7.3/5 HP
Equipped With
Yasnac J50 CNC
16 Position Tool Changer
Internal Pallet Changer
Manual Pulse Generator / Remote Jog Handwheel
Coolant System
