VIPER VT-21MS Cnc Turning Center (2014)
Have one to sell?
ConditionUsed
1 available

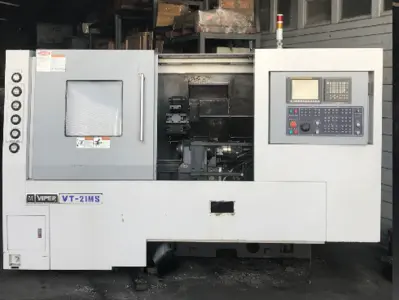

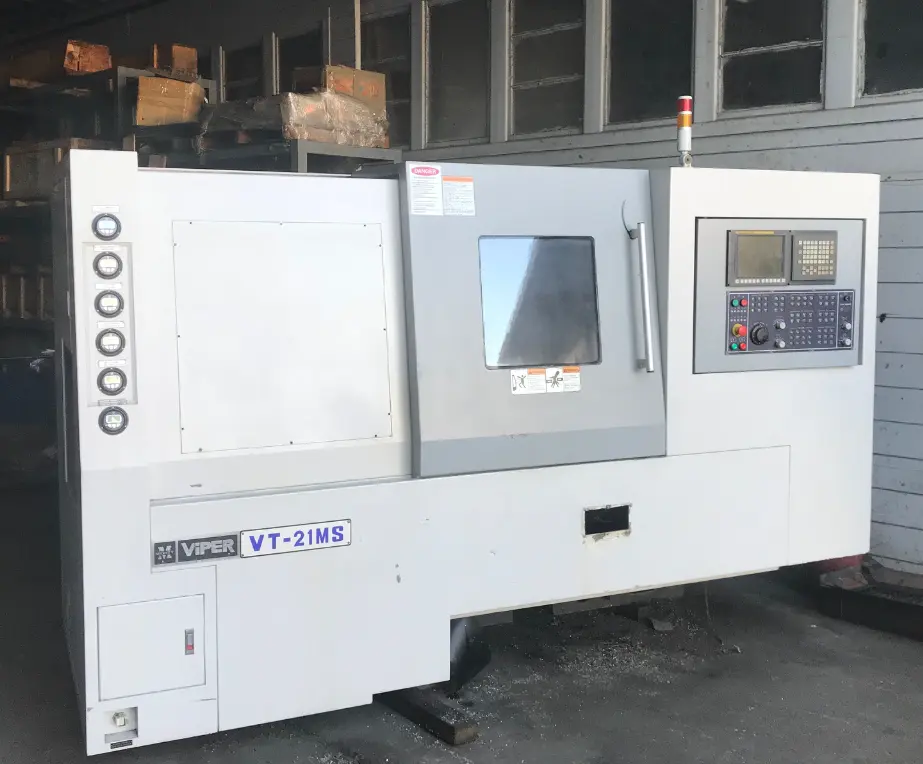

Mighty Viper Model VT-21MS Live Tool CNC Lathe with Subspindle
Specifications:
Max. Turning Diameter 14.56"
Max. Turning Length 31.49"
X-Axis Travel 8.9"
Z-Axis Travel 24.4"
W-Axis Travel 31.49"
Spindle Motor 35 Hp
Chuck Size 8"
Bar Capacity 2.04"
Spindle Thru Hole 2.4"
Spindle Speeds Up to 5,000 Rpm
Spindle Nose ISO A2-6
Turret 12 Station
Turret Type BMT-55 Live Turret
Sub-Spindle Motor 10 Hp
Sub-Spindle Chuck Size 6"
Sub-Spindle Nose ISO A2-5
Sub-Spindle Bar Capacity 1.7"
Fanuc 0iTD Cnc Control, 10.4" Screen
Tool Life Management Function Built In To Control
BMT-55 Axisl Live Tool Holder
BMT-55 Radial Live Tool Holder
Tool Presetter
Parts Catcher
Foot Pedal
Chip Conveyor
Work Light & Alarm Light
Auto Lubrication System
Coolant System
Heat Exchanger For Control Cabinet
Leveling Bolts & Blocks For Base
Operation Manual & Control Manual
C-Axis on Main Spindle & Sub-Spindle
