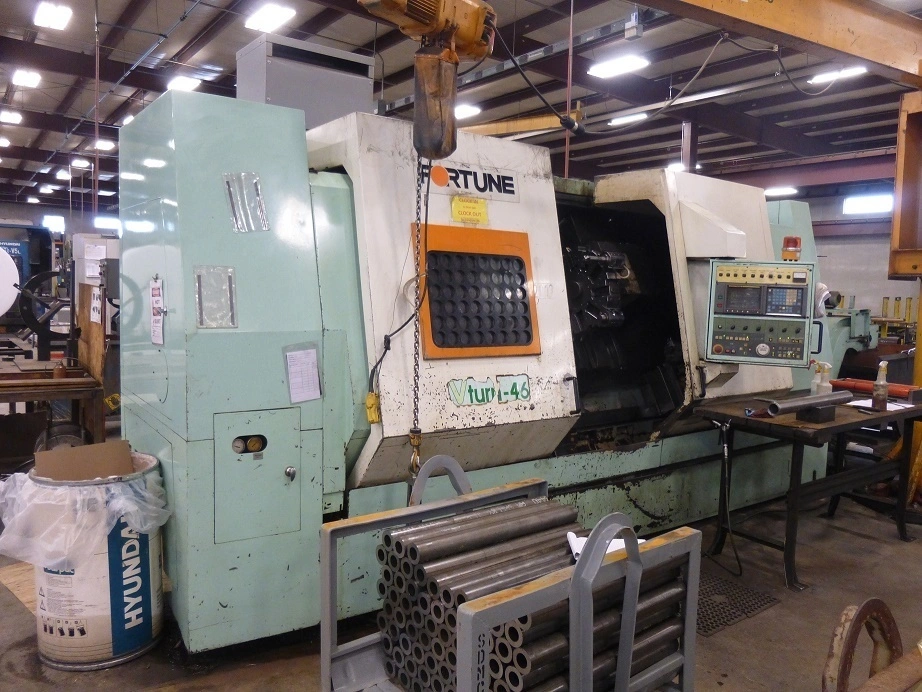

15" chuck Fortune Model VTurn 46 3 Axis Slant Bed CNC Turning Center (1996)
Have one to sell?
ConditionUsed
1 available
15" 3 Jaw Hydraulic Chuck, Slant Bed Design, Fanuc 0T CNC Control
Fortune Model VTurn 46 CNC Turning Center
Max Swing over Bed: 28.7"
Max Swing over Carriage: 20.5"
Max Cross Travel (X-Axis): 0.98" + 14.4"
Max Longitudinal Travel (Z-Axis): 65"
Distance between Centers: 69"
Max Bar Capacity: 4.3"
Spindle Nose: A2-11
Spindle Bore: 4.8"
Turret Positions: 10
Main Motor: 40 HP
Fanuc OT CNC Control
15" 3-Jaw Kitagawa Hydraulic Chuck (Model B-15)
Sub-Spindle
Chip Conveyor
