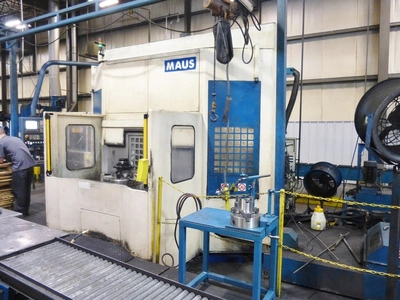

26" Maus Model MTC-500 CNC Live Tool Vertical Lathe (2004)
Have one to sell?
ConditionUsed
1 available
36 Position ATC, Live Tool, (2) 26" Hydraulic Chucks, Rotating Pallet Shuttle, Siemens 840 CNC
Maus Model MTC-500 26" CNC Live Tool Wheel Turning Vertical Lathe
Rotating Pallet Shuttle (2) 26" Six Jaw Hydraulic Chucks
**** Made in Italy ****
X-Axis Stroke: 62.9"
Z-Axis Stroke: 27.5"
Swing Inside the Guards: 36"
Tool Number: 2
Tool Positions: 36 ATC
Tool Type: Capto C6 for Both Fixed & Live
Spindle Motor: 80 HP
Spindle Speed: 1,200 RPM
Axle Speed: 0-50 m/min (continuously)
Feed Voltage & Frequency: 400 V(+/- 5%, 50 HZ (+/- 1-2%)
Set Up Power: 144 HP
Compressed Air Pressure: 6-8 Bar
Compressed Air Consumption: 30 Nm3h
Siemens 840D/PCU50 CNC Controls
26" 6 Jaw Hydraulic Chuck
(2) Live Tool Spindles
(1) Live Spindle Rotates Chuck & B-Axis Orientation
(1) Live Spindle Mounted on X & Z Axis
Full B-Axis Rotating
Internal Spindle Encoder
High Pressure Coolant Thru Tool & Flood Coolant
Tool Changer-36 Positions
Gravity Bed Filtration System
In Line Paper Filtration for Thru Tool Coolant
Marposs CMM Probing System
Built In CAN Cycle Programming
Machine Tool Management
RFD Chip Tool Identification
Siemens "Step 7" PLC Software
Prometec "Pro Sin" Monitoring Software/Tool Failure Detection
Setup for Multi Channel Function-Transfer Lines, Robotics, Laser Detection
