39.4" x 157" Nardini Model Logic 500G Flat Bed CNC Lathe
Have one to sell?
ConditionUsed
1 available
2 Axis, Flat Bed Design, 39.4" x 157", Fanuc 20-T CNC, Video Available
Nardini Model Logic 500G CNC Flat Bed Lathe
2 Axis, Flat Bed Design, 39.4" x 157", Fanuc 20-T CNC, Video Available
Swing: 39.4"
Swing Over Cross Slide: 25.6"
Chuck Diameter (3-Jaw): 31.5"
Distance Between Centers: 157.4"
Maximum Turning Length: 137.7"
X-Axis Travel: 19.68"
Z-Axis Travel: 157.4"
Rapid Traverse (X & Z Axis): 393 IPM
SPINDLE SPEED (3 Ranges Inf. Var.): 15 TO 1000 RPM
SPINDLE BORE: 4.72"
Spindle Nose: A1-11
MAX. POWER RATING: 50HP (40 CONTINUOUS)
TAILSTOCK TAPER: 6 MT
Bi-directional Turret Positions: 8
Tailstock Quill Diameter: 6.69"
Quill Stroke: 11.81"
Approx. Weight: 29,000
Floor Space: 296" x 97"
Fanuc 20TA CNC CONTROL
Autoblock Power Chuck, 900 RPM Max.
Hydraulic Power Unit for Chuck & Tailstock
VDI 60 TOOL HOLDER DISC
40" STEADY REST W/ROLLERS, 15-3/4" - 23-5/8"
40" STEADY REST W/ROLLERS, 15-3/4" - 16-1/2"
BALL SCREWS ON CROSS SLIDE AND SADDLE

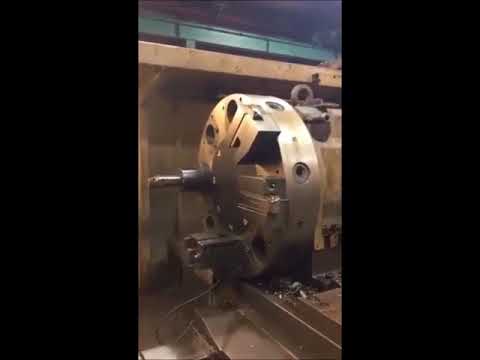

31.5" 3-JAW CHUCK
FULLY PROGRAMMABLE HYDRAULIC TAILSTOCK
CHIP CONVEYOR 157.48"
AUTOMATIC LUBRICATION
- ALL AVAILABLE MANUALS
