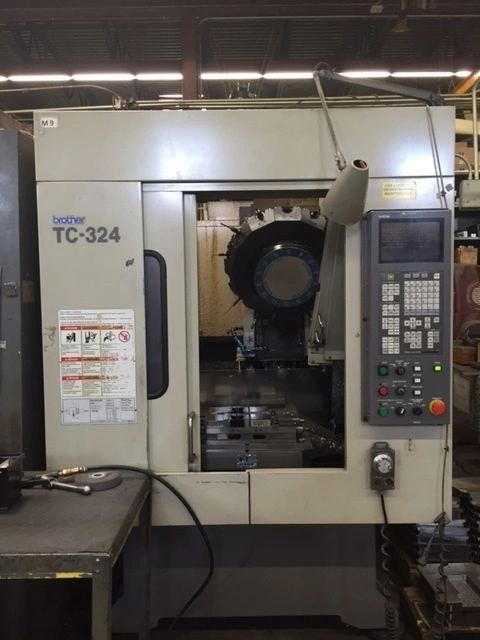

Brother TC-324N CNC Drill & Tapping Center

Brother TC-324N CNC Drill & Tapping Center
Specifications:
Table working area size (2 surfaces) 19.7" x 11.8"
Maximum load on table (uniform load) 176 lbs x 2
X-axis travel 16.5"
Y-axis travel 12.6"
Z-axis travel 10.6"
Spindle speeds 10 to 10,000 Rpm
Spindle taper BT30
No. of turret stations 14
Tool to tool time 1.2 seconds
Chip to chip time 2.3 seconds
Rapid traverse rates, x,y,z axis 1181 I.P.M.
Table top to spindle nose 7.5" to 17.7"
Spindle drive 7.5 H.P.
Machine weight, approx. 6,200 LBS.
Dimensions, approx. 4'8" x 10' FB x 8' High
Equipped With:
Brother CNC-830 cnc contol
Auto 2-pallet changer, spin style
14-position turret
Manual pulse generater
