4 Axis, 16" x 12" x 12"

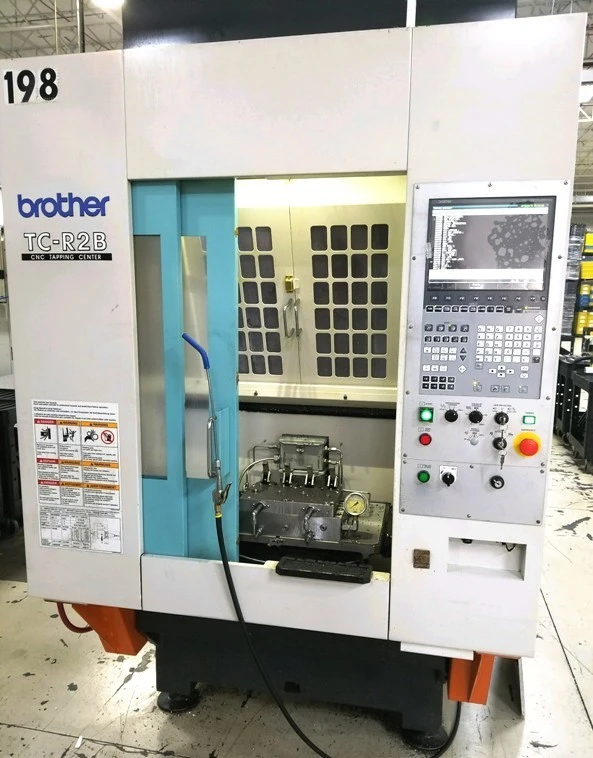

Brother TC-R2B 4 Axis Drilling & Tapping Center with 180 degree table
Table size 23.6" x 16.5" (each side)
Table Capacity 256 lbs (one side)
Table position time 2.9 S/180 deg.
X-axis travel 16.5"
Y-axis travel 12.8"
Z-axis travel 12"
X-axis Rapid Feedrate 1969 ipm
Y-axis Rapid Feedrate 1969 ipm
Z-axis Rapid Feedrate 1969 ipm
Cutting Rate 394 (X, Y) 787 (Z)
Spindle Speed 10,000 IPM
Spindle Taper 30
Main Motor 15 HP Note: 26.4 Hp.for 10 Min in Start of Cutting!
Coolant Thru Spindle
Drum Type 14 Station ATC
Equipped with:
High Torque Option Full Power 26.4 Hp. Min Rated.
Big Plus 30 Taper Spindle
PLC Function
Shower Gun
Mist Collector
Work Light Kit (2-light) w/brackets
Manual Pulse Generator
Indicator light (3) stage
Chip Conveyor Hinge Type
Hydraulic System w/plumbing 3,000 PSI
Tool Breakage Sensors
Part Present Air Sensing
Hydraulic Clamping Interfaced 2 Sides APC's
