Index Traub Model V250 VerticalLine CNC Vertical Turning Center (2002)
Have one to sell?
ConditionUsed
1 available
16.5" Turning Diameter, Max Swing 17.7", 4200 RPM, 20HP, Fanuc 16T CNC

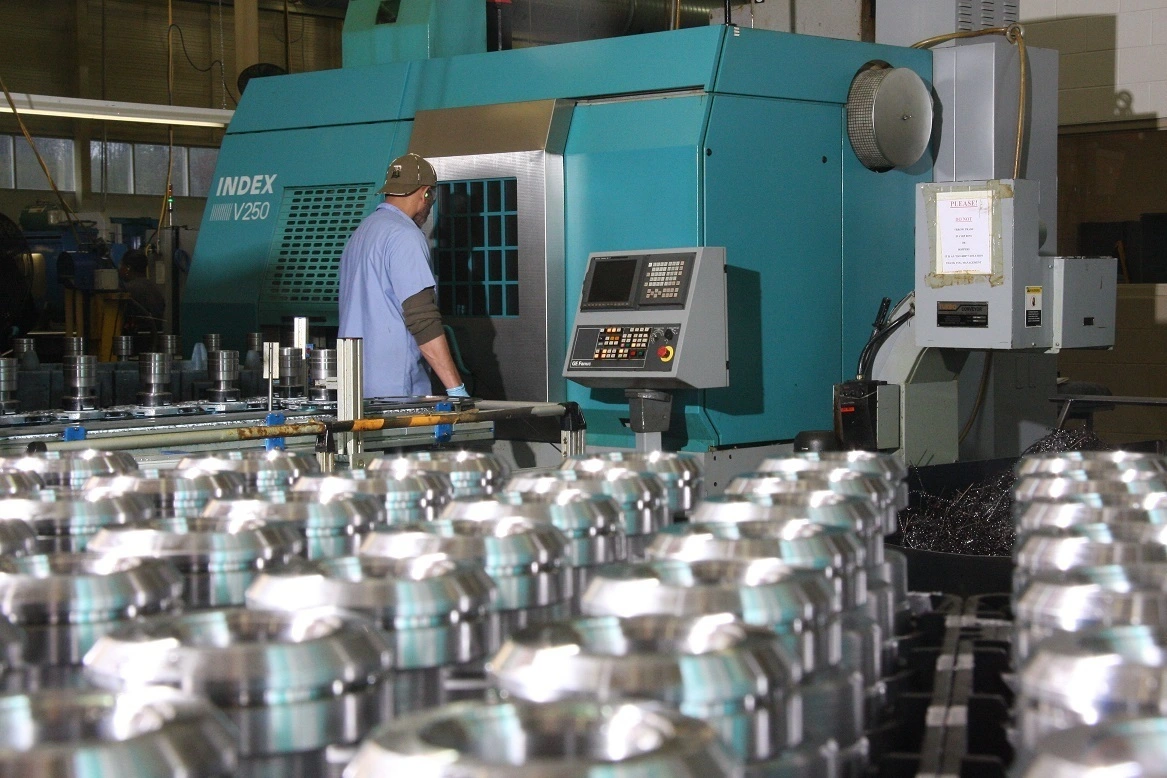

Index Traub Model V250 VerticalLine CNC Vertical Turning Center
Turning Diameter: 16.5", (420 mm)
Swing Diameter: 17.7", (450 mm)
Turning Height: 13.4", (340 mm)
Turning Length: 13.4", (340 mm)
Spindle Turning Speed-Stepless: 4,200 RPM
Rotation -0 Maximum 420 mm (Depending On Fixtures & Pallets)
Slide X/Z Of The Main Spindle: 45"/13.4", (1145/340 mm)
Rapid Feed X/Z Min. 40/30 m/Min.
Spindle Bore: 3.5", (90 mm)
Front Bearing Diameter: 5.5", (140 mm)
Spindle Drive: 20 HP
Clamping Stroke: 32mm / 1.25"
GE Fanuc 16i-T CNC Control/ 32 Bit Mutltiprocessor Control
PCMCIA & RS232 Communication Control
Coolant Thru Spindle
Palletized Carousel Loader
High Hinged Chip Conveyor
3 Jaw Chuck
X1 Axis Position Gauging System; Glass Scale
Fabricated Machine Base, Rigid Cast Iron Frame
Vertical Thermosymmetrical Headstock with Direct Access To Optional
Handling System Main and Axis Drives Powered by AC Motors.
100 Gallon Coolant System
Right side steady rest unit
Standard Pneumatic Collet Closing System
Part stop Unit
Full clamping Cylinder OVS
