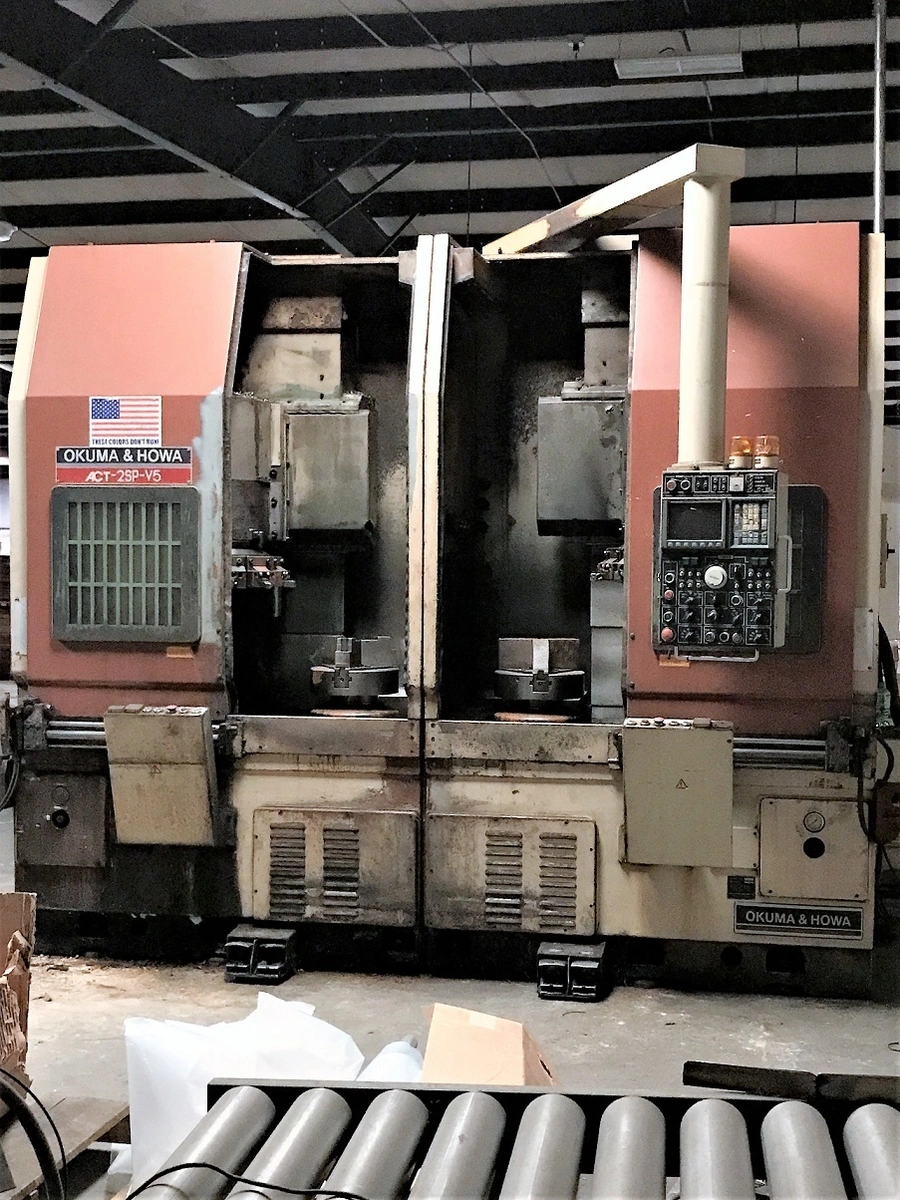

OKUMA & HOWA ACT 2SP-V5 CNC Twin Spindle

Okuma & Howa Model ACT 2SP-V5 CNC Twin Spindle Vertical Turning Center
Distance between spindle centerlines: 805mm (31.69")
Max. cutting diameter: 550mm (21.65")
Max. cutting length: 610mm (24.01")
Spindle center height from floor: 1060mm (41.73")
Spindle Nose: JIS A2-8
Hole-through-spindle diameter: 110mm (4.33")
Spindle Speed range: 20-2000 RPM
Turret Type: 012 + V12
Max. number of tools: 12 + 12
X-Axis Travel: 320mm (12.59")
Z-Axis Travel: 610mm (24.01")
X-Axis Rapid Traverse: 12m/min (472 IPM)
Z-Axis Rapid Traverse: 12m/min (472 IPM)
Cutting Feedrate: 0.0001 - 500 mm/rev
.00001 - 19.68 inch/rev
Main Drive Motor: AC 30kWx2 (45 HP)
