Mazak FH480X Horizontal Machining Cell (1996)
Machining Centers, Horizontal15.7" x 15.7" (27) Pallet, (4) Machine Cell, 120 ATC (per machine) Mazatrol M Plus CNC
size | 15.75" x 15.75" |
X | 22" |
Y | 22" |
Z | 22" |
Power | 30 hp |
RPM | 12,000 RPM |
Taper | 40 |
Pallet-W | 15.75" |
Pallet-L | 15.75" |
# Axis | 4 |

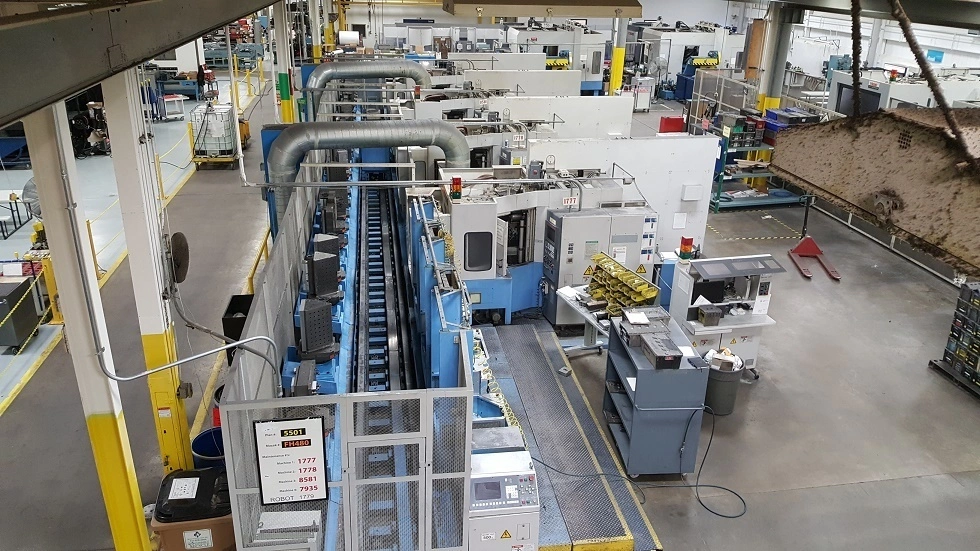

Mazak Model FH480X (4) Machine Cell with H480 Palletech Pallet Shuttle
Machines in Cell: 4
Pallet Change Time: 5 seconds
Pallet Size / Number of Pallets: 15.75" x 15.75"/ 27 pallets
Rapid Traverse: 1259 IPM
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: CAT #40
Table Indexing: FULL B
Table Load Capacity: 880 lbs.
Tool Change Time: 4.0 seconds
Tool Magazine Capacity: 120 each
Machine Weight: 21,800 lbs.
X-Axis Travel: 22.05"
Y-Axis Travel: 22.05"
Z-Axis Travel: 22.07"
Max. Tool Diam./Length/Weight: 5.9"/12.59"/23.46 lbs.
Spindle Center to Pallet Top: 1.96" - 24.01"
Mazatrol M Plus, 27 Position Palletech System
