8" x 18" Chevalier FSG-818M Horizontal Surface Grinder
Have one to sell?
ConditionUsed
1 available
6" x 18" Electro Magnetic Chuck, Walker Control Variable Control

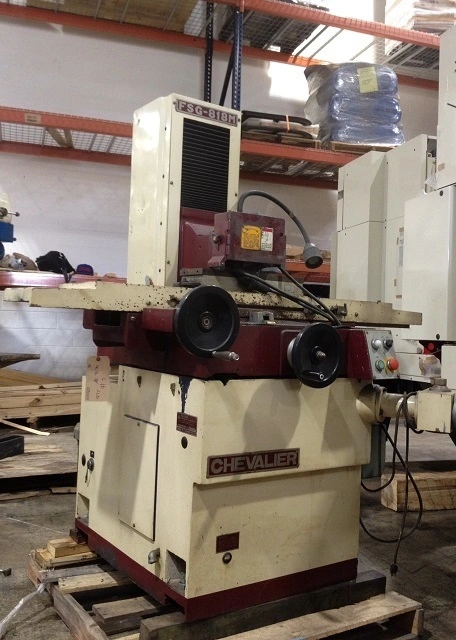

Chevalier FSG-818M Horizontal Surface Grinder
Grinding length (maximum) 18"
Grinding width (maximum) 6"
Longitudinal table travel (max.) 19"
Crossfeed table travel (max.) 7"
Distance spindle center to table
center (maximum) 18"
Downfeed handwheel--per graduation .0001"
Downfeed handwheel--per revolution .05"
Crossfeed handwheel-per graduation .0005"
Crossfeed handwheel-per revolution .100"
Grinding wheel dimensions--diameter 8"
--width 1/2" or 1"
--hole size 1-1/4"
Spindle motor (3450 rpm) 1 HP
Electrics 220/440/3/60
Machine weight 1,490 lbs
6" X 18" Fine Line Electromagnetic Chuck
Walker Model 9247 Variable Control
