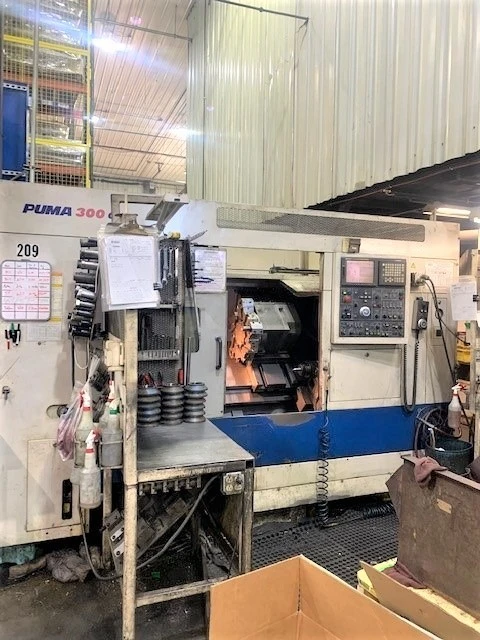

12" chuck Daewoo Puma 300GL 2 Axis CNC Lathe (2000)

Daewoo Model Puma 300GL 2-Axis CNC Lathe with Gantry Load

Specifications:
Swing over bed: 23.0"
Swing over carriage: 14.5"
Distance between centers: 25"
Maximum turning diameter: 15.7"
Maximum turning length: 26.8"
X-Axis Travel: 11.1"
Z-Axis Travel: 26.8"
Spindle speed: 28 - 2,800 RPM
Spindle nose: A2-8
Draw tube: I.D. 4.05"
Spindle bore diameter: 4.53"
A.C. Spindle Motor: 30 Hp
Weight, Approx. 12,900 Lbs.
Equipped with:
Fanuc 18T Cnc Control
Turbo Chip Conveyor
Misc. Spindle Liners
Misc. Collets
