| size | 12" Chuck | 12" Chuck |
| Swing | 22" | 558.8 mm |
| Machining Length | 30" | 762 mm |
| # Axis | 2 | 2 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,000 RPM | 3,000 RPM |
| Turning Dia | 12" | 304.8 mm |
| Tailstock | No | No |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc 21iT) | CNC (Fanuc 21iT) |
| Dimensions | 14' lomg x 6'6" wide..pan is 8'x3' | 14' lomg x 6'6" wide..pan is 8'x3' |
| Weight | 14,000 | 14,000 |
Bridgeport Romi G-30 2-Axis CNC Lathe
Max Swing Over Bed: 22.8"
Max Turning Diameter: 12.6"
Max Bar Capacity: 2.5"
Spindle Speed: 3,000 RPM
Spindle Motor: 30 HP
Spindle Bore: 3.15"
Spindle Nose: A2-8
X-Axis Travel: 10.04"
Z-Axis Travel: 40.15"

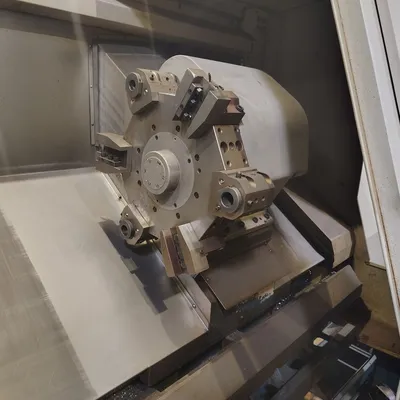

Turret: 12 Station
Floor Space: 14' X 6'
Machine Weight: 13,888 Lbs.
Fanuc 21iT CNC Control

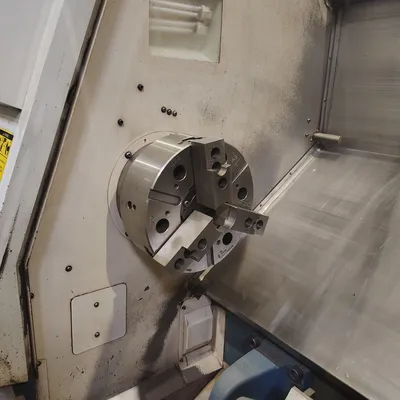

12" 3-Jaw Hydraulic Chuck
Easy Feature Turn
