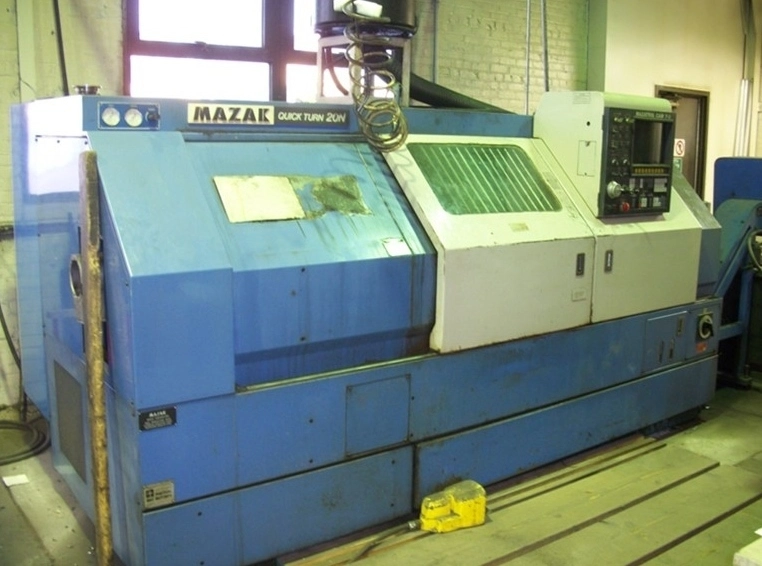

10" chuck Mazak Quick Turn QT-20N 2 Axis Slant Bed CNC Lathe
Lathes CNC10" Chuck, 2 Axis, Slant Bed, 8 Position Turret, Mazatrol CAM T-2 CNC
size | 10" |
Swing | 17.32" |
Machining Length | 40" |
# Axis | 2 |
Chuck Size | 10" |
Bar Capacity | 2.76" |
Power | 25 hp |
Max RPM | 3,000 RPM |
Turning Dia | 10" |
Tailstock | Yes |
Live Tooling | No |
Sub Spindle | No |
Control | CNC (Mazatrol T2) |
Mazak Model QT20N 2 Axis Slant Bed CNC Lathe
X Axis Travel: 7.125"
Z Axis Travel: 40.5"
Max. Swing over bed / Cross Slide: 17.32" / 10"
Max. Machining Length: 40.69"
Maximum Machining Diameter: 10.62"
Turret Type: 8 Position Turret
Spindle Bore / Bar Capacity: 3.15" / 2.76"
Spindle Motor: 25 HP
Spindle Nose: JIS A2 - 8"
Spindle Speed: 40 - 3000 RPM
Mazatrol CAM T-2 CNC
10" 3 Jaw Howa Chuck
Tailstock
Chip conveyor
