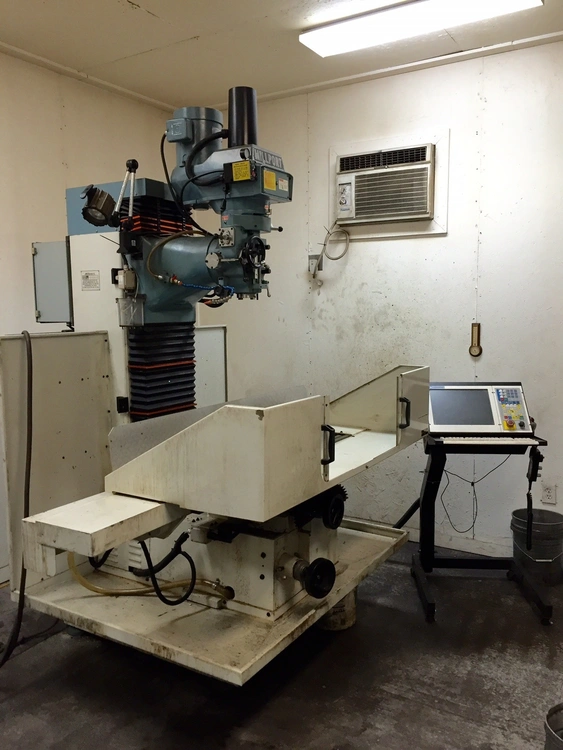

29" x 14" x 5" Millport Model Rhino 3 Axis CNC Mill (2005)

Millport Model Rhino 3 Axis CNC Bed Mill
Table Size - 10" x 50"
Table Travel(X axis) - 29.75"
Saddle Travel(Y axis) - 14.75"
Quill Travel(Z axis) - 5"
Knee Travel - 15"
Spindle speeds - 60-4200 RPM
Spindle Motor - 3 HP
Spindle Taper - Quick Change #30
Electrics - 220/440/60/3 Presently 240 Volts
Approximate Machine Weight - 5,800 Lbs
Equipped with
Centroid M-60A CNC Control PC Based
In Manual Mode Control Acts as 3-Axis DRO
Conversational, M & G Code
RS-232 Port
Handwheels on both X & Y Axes
Rigid Ram
Pneumatically Actuated Power Draw Bar
Hardened & Ground Ways
Bijur Spraymist Coolant System
Flood Coolant System w/Pump & Tank located in Machine Base
Jin Yin Lubrication System
