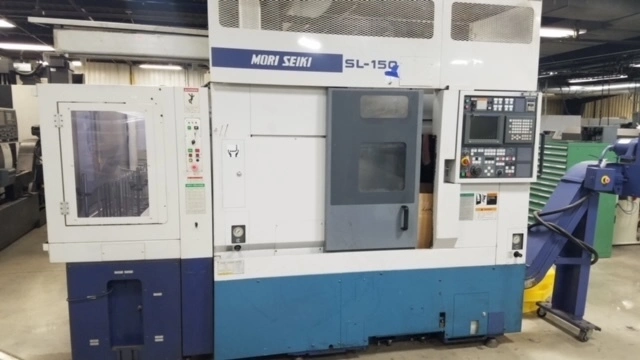

MORI SEIKI SL-150 CNC Lathe

Have one to sell?
773.866.9600
sales@assetexchangeinc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC
Manufacturer:
MORI SEIKI
Model:
SL-150
Year:
1997
Stock #:
63001
Status:
For Sale

Description

Gantry loader, MSC-518 (Fanuc) CNC Control

size6"6"
Swing24"609.6 mm
Machining Length13.8"350.52 mm
# Axis22
Chuck Size6"152.4 mm
Bar Capacity1.7"43.18 mm
Power15 hp11.2 kW
Max RPM5,000 RPM5,000 RPM
Turning Dia16.9"429.26 mm
TailstockYesYes
Live ToolingNoNo
Sub SpindleNoNo

Mori Seiki Model SL-150 CNC Turning Center
Swing Over Bed: 24.4"
Swing Over Cross Slide: 17.9"
Distance Between Centers: 24.8"
Maximum Turning Diameter: 16.9"
Maximum Work Length: 13.8"
Travels: (X)-9.1", (Z)-20.5", (B)-16.9"
Spindle Bore: 1.7"
Spindle Speed: 50 to 5000 RPM
Spindle Motor: 15/10 HP
Turret Capacity: 12 Tools

MSC-518 (Fanuc) CNC Control
6" Kitagawa B-206 Chuck
Turbo Conveyor
Chip Blaster High Pressure Coolant
Gantry Loader
Touch Setter
All Available Tool Holders
