MORI SEIKI SL200S/500

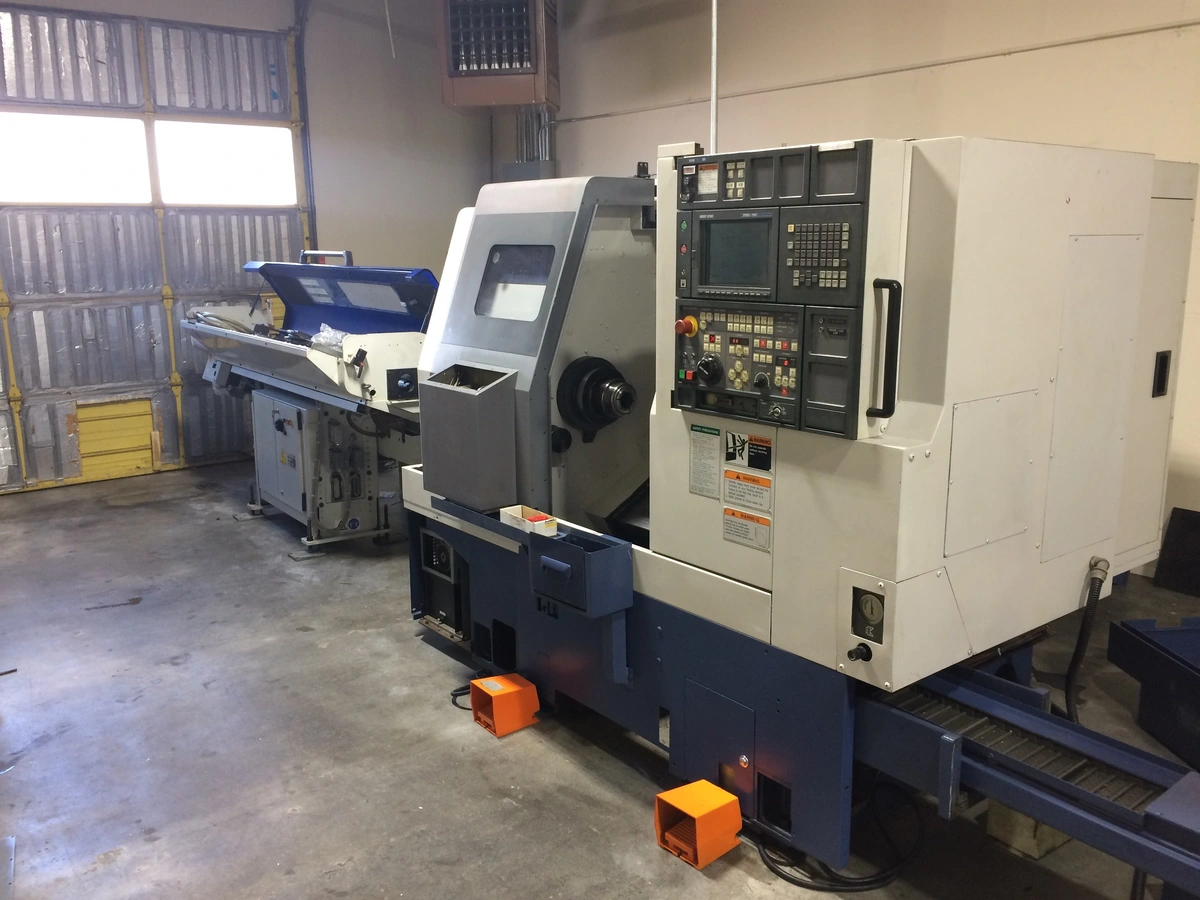

Mori Seiki Model SL200S/500 Sub-Spindle CNC Turning Center
Max Turning Diameter: 15.353
Max Turning Length: 12.763
Max Bar Capacity: 2.563
Swing Over Carriage: 20.083
Swing Over Bed: 26.773
X Axis Travel: 9.253
Z Axis Travel: 19.493
B Axis Travel: 19.883 ( Sub Spindle )
C Axis: 0.001
Rapid Traverse X Axis: 709 IPM
Rapid Traverse Z Axis: 945 IPM
Rapid Traverse B Axis: 945 IPM
Main Spindle Nose: A2-6
Spindle Bore: 2.873
Main Spindle Speed: 4,000 RPM
Spindle Motor: 15 HP
Sub Spindle Nose: A2-5
Spindle Bore: 1.693
Sub-Spindle Speed: 6,000 RPM
Spindle Motor: 10 HP
Equipped with:
Mori Seiki MSC-501 CNC Control
8" Hydraulic Chuck on Main Spindle
6" Hydraulic Chuck on Sub-Spindle
Turbo Chip Conveyor
Tool Presetter
Parts Catcher
