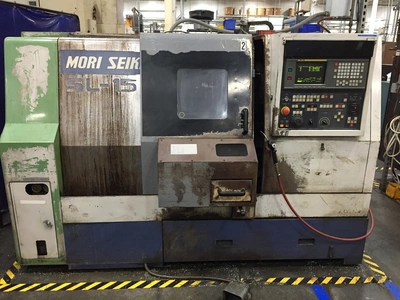

MORI SEIKI SL-15 CNC Lathe

Have one to sell?
773.866.9600
sales@assetexchangeinc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC
Manufacturer:
MORI SEIKI
Model:
SL-15 CNC LATHE
Stock #:
54848
Status:
For Sale
Serial #:
S/N 1665

Description

...

size8" Chuck8" Chuck
Swing17"431.8 mm
Machining Length22"558.8 mm
# Axis22
Chuck Size8"203.2 mm
Bar Capacity1.77"44.958 mm
Power10 hp7.5 kW
Max RPM6,000 RPM6,000 RPM
TailstockYesYes
Live ToolingNoNo
Sub SpindleNoNo
Dimensions92" x 60" x 70"92" x 60" x 70"
Weight95009500

Mori Seiki Model SL-15 2-Axis Slant Bed CNC Lathe
Swing Over Bed: 17.7"
Distance Between Centers: 23.4"
X-Axis Travel: 5.3"
Z-Axis Travel: 22"
Spindle Nose: A2-5"
Spindle Bore: 2.0"
Spindle Speed: 60 - 6,000 RPM
Spindle Motor: 10 HP
Turret Type: 12 Position Turret
Tailstock Quill Dia./Type: 3" / #4 MT
Machine Dimensions LxWxH: 92" x 60" x 70"
Machine Weight: 9,300 lbs.

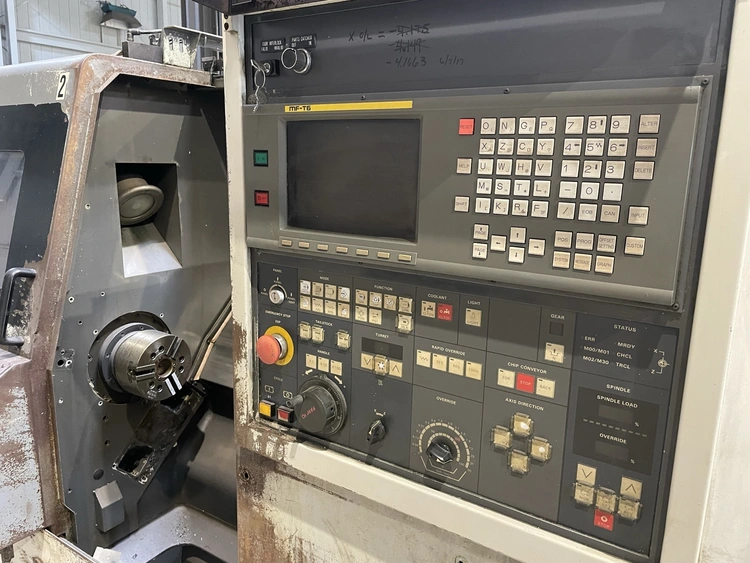

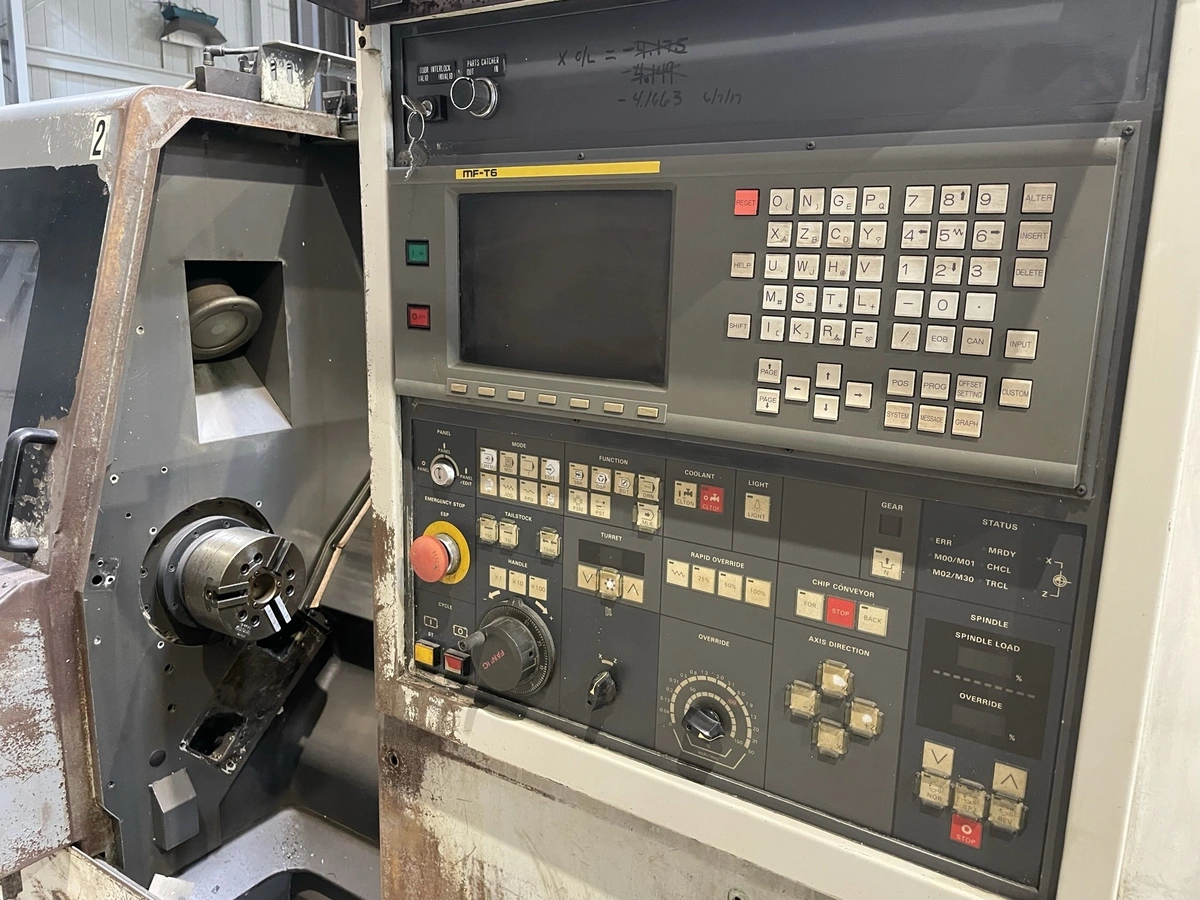

Mori Fanuc MFT6 CNC Control
3-Jaw 6" Chuck
Tailstock
