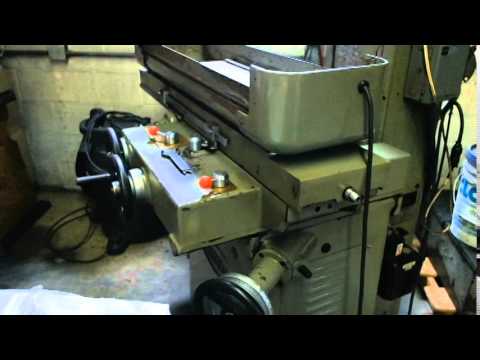

6" x 18" Mitsui Model MSG250H-2 6" x 18" Hydraulic Surface Grinder

Mitsui Model MSG250H-2 6" x 18" Hydraulic Surface Grinder
Working Surface Of Table: 8" X 19"
Maximum Surface Ground: 9-1/2" X 20"
Maximum Distance Between Table
Surface And Spindle Center: 22-1/2"
Range:
Longitudinal: 20"
CROSS (AUTOMATIC): 9-1/2"
CROSS (MANUAL): 10"
VERTICAL: 16"
Inf. Variable Longitudinal: 5 - 68 FPM
Auto Cross Feed To Table Per Stroke: . 0.02" - 0.05" IPM
Auto Vert. Feed Increments, Ten Steps: .0001" - .001"
Rapid Cross Feed Rate: 2 - 17 IPM
Elevating Handwheel Graduation: 0.0001"
Cross Feed Handwheel Graduation: 0.001"
Cross Feed Vernier: 0.0001"
Optional Fine Feed Knob, Graduation: 0.00005"
Equipped With:
Electromagnetic Chuck
