Hyundai HiT8G 2 Axis Gang Style CNC Lathe (2000)

Hyundai Model HiT8G 2 Axis Gang Style CNC Lathe
X-Axis Travel 490mm / 19.29"
Z-Axis Travel 305mm / 12"
Standard Cutting Diameter 100mm / 4"
Maximum Cutting Diameter 160mm / 6.3"
Maximum Cutting Length 160mm / 6.3"
Distance Between Spindle Face
and Table End 145 mm - 499 mm / 5.7" - 17.67"
Spindle Speed 60 RPM - 6,000 RPM
Spindle Nose JIS A2 - 5
Spindle Bore Diameter 50mm / 1.96"
Maximum Torque 10.4 kg fm / 75 ft-Lbs
Spindle Motor Power AC 7.5 kW / 10 HP
Rapid Traverse X-Axis 24 m/min. / 945 ipm
Rapid Traverse Z-Axis 30 m/min. / 1,181 ipm
Cutting Feedrate X-Axis 5,000 mm/min. / 196.8 ipm
Cutting Feedrate Z-Axis 5,000 mm/min. / 196.8 ipm
Eqiupped With

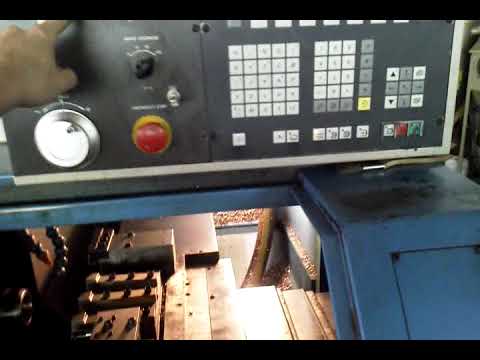

Siemens HiTROL-805 CNC Controller
Collet Chuck
Tool Eye
Chip Conveyor
Bar Feed
Gang Style
Coolant System
