6" chuck Yang Model SML12 2 Axis CNC Gang Style Lathe (1997)

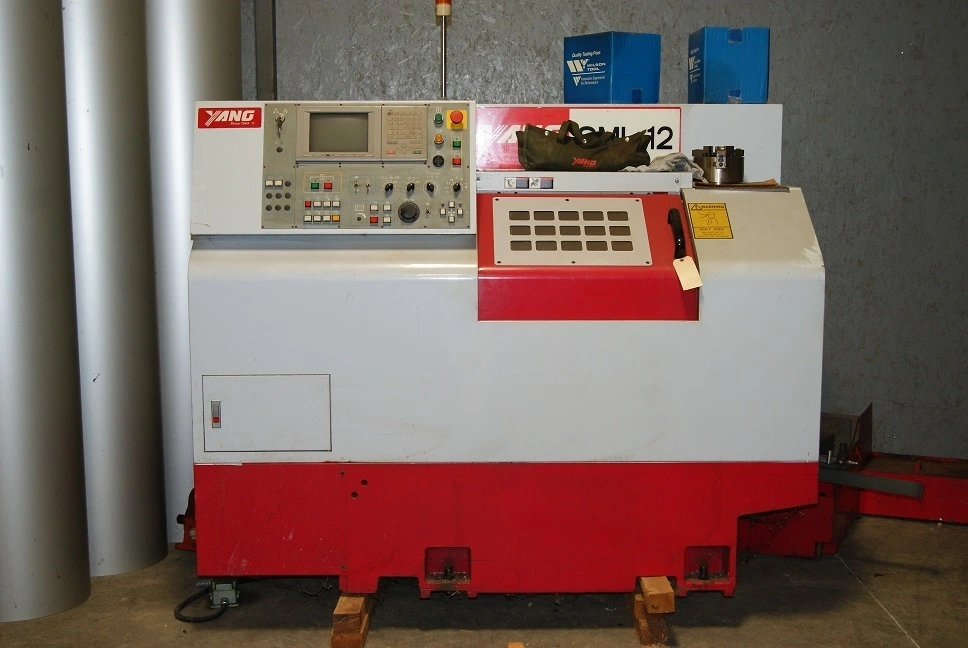

Yang Model SML12 CNC Gang Style Lathe

Specifications:
Swing over bed 13"
Maximum turning diameter 5.3"
Swing over cross slide 5.35"
Maximum turning length 5.9"
X-axis travel 9.05"
Z-axis travel 9.05"
Spindle nose Asa A2-5
Spindle hole 1.77"
Spindle bar capacity 1.3"
Spindle speed up to 6,000 Rpm
Rapid Traverse 1181 I.P.M.
Motor 7.5 HP
Weight, approx. 3,800 lbs.
Equipped With:
Mitsubishi cnc control
6" 3-jaw chuck
Collet nose
Coolant tank
Misc. tool holders
