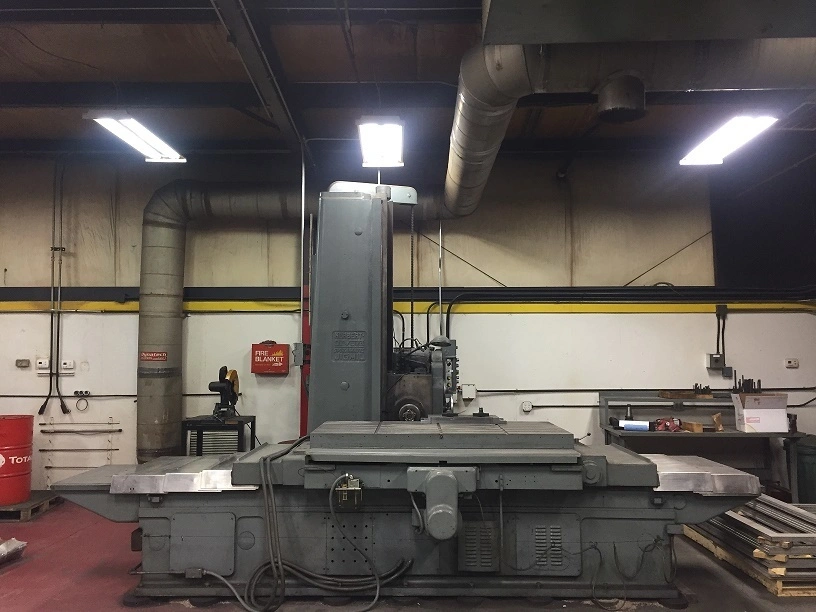

4" Devlieg Herbert Model Spiramatic 43H-72 Horizontal Precision Jig Mill
Have one to sell?
ConditionUsed
1 available
Newall Digital Readout. Full Pendant Control
Devlieg Herbert Model Spiramatic 43H-72 Horizontal Precision Jig Mill
Spindle Diameter - 4"
Spindle Nose Taper - No. 50 NMTB
Spindle Travel - 20"
Table Size - 35" x 72"
Horizontal Travel - 72"
Retraction of Table - 16"
Vertical Travel of Head - 60"
Spindle Speeds (16) - 21 to 1200 RPM
Spindle Feeds (8) - .002 to .024
Milling Feedrates X & Y (16) - 0.5 to 36 IPM
Rapid Traverse X & Y - 50 and 150 IPM
Rapid Traverse Z - 95 IPM
Approx Floor Space - 205" x 146" x 126"
Weight, Approx - 31,900 Lbs.
Power Draw Bar
Newall Model DP7 Digital Readout System
Newall Model TOPAZ Digital Readout System
Full Pendant Control
