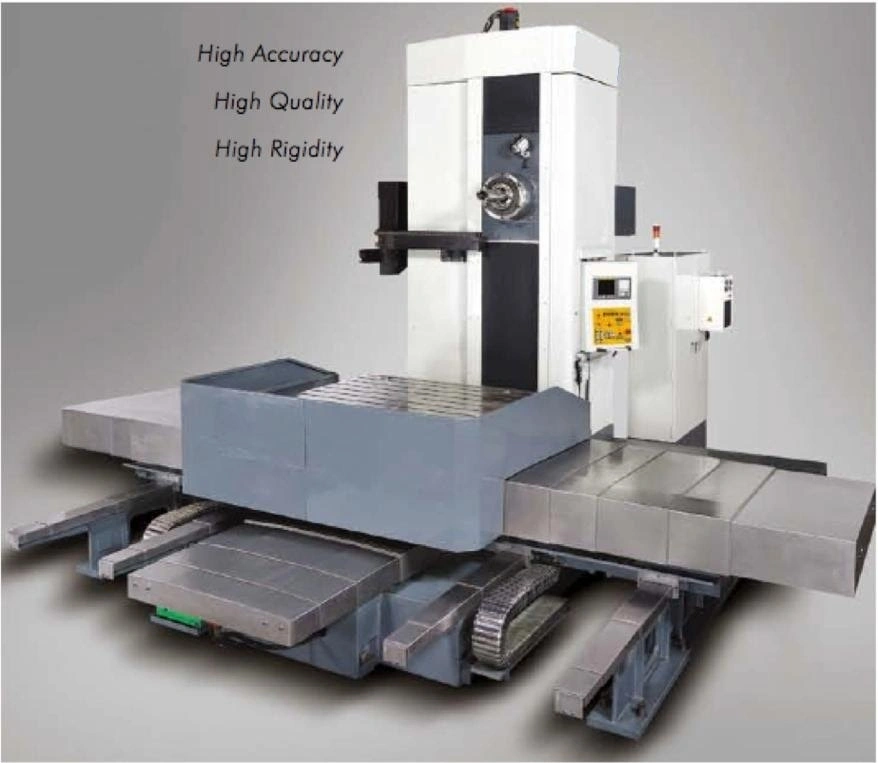

4.3" Poreba Model HBM-4/2MT 4-Axis CNC Table Type Horizontal Boring Mill (NEW)

Poreba Model HBM-4/2MT 4.3" 4-Axis CNC Table Type Horizontal Boring Mill (NEW)
Rotary Table Dimension: 62.9" X 70.8"
Work Table Travel X-Axis: 78.7"
Spindle Travel Y-Axis: 78.7"
Work Table Travel Z-Axis: 59.0"
Spindle Travel W-Axis: 23.6"
Table T-Slot: .86" X 9
Max. Loading Weight: 18,739 Lbs.
Rotary Table Indexing: .001 Degrees (Full 4th)
Maximum Rotation Diameter: 83.7"
Table Rotation Speed: 0.8 RPM
Maximum Table Thrust: 6,480 N
Main Motor: 18/22 KW (24/29 HP)
Maximum Spindle Speed: 5-2,000 RPM
Spindle Taper: ISO 50/BT 50
Spindle Diameter: 4.3"
Spindle End Diameter: 8.4"
Maximum Spindle Torque: 1245 Nm
Maximum Spindle Thrust: 19,600 N
Rapid Feed (X,Y,Z): 393 IPM
Rapid Feed (W): 118 IPM
Feed Rate X/Y Axis: 1-196 IPM
Feed Rate Z/W Axis: 1-118 IPM
Power Capacity: 65 KVA
Machine Dimensions: 212" X 328" X 188" (LxWxH)
Machine Weight: 63,934 Lbs.
