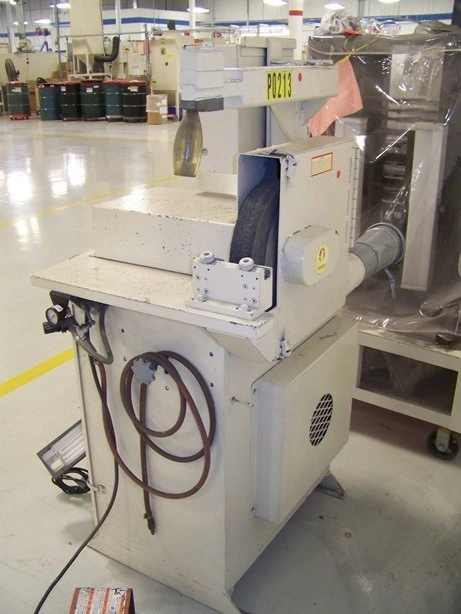

G & P (Grinding & Polishing Machinery) Model S6422F Turbine Blade Grinder (1996)

G & P (Grinding & Polishing Machinery) Model S6422F Turbine Blade Grinder
Special Jet Blade Polisher
1. 3 HP, 900 RPM, TEFC motor wired for 460/3/60

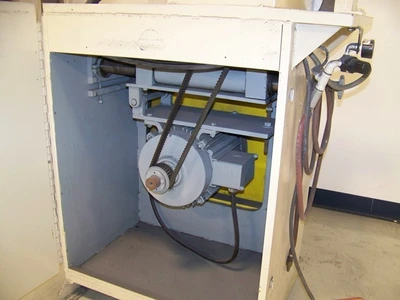

2. V-Belt drive from motor to spindle
3. Abrisive belt guard w/ exhaust outlet for 16" diameter x 2" wide x 10"
bore 3M SST Scotch Brite or other polishing wheel (polishing wheel not
included).
4. Jet blade guides
5. 1" x 1" support for top roller guide
6. Wheel in-feed to be linear and air cylinder actuated with pedal control
to an adjustable mechanical stop.
7. Magnetic motor starter with motor overload protection in a NEMA 12
enclosure
Model: S-6422-F
Current Electrical Arrangement: 460/3/60
Specifications (Preliminary)
