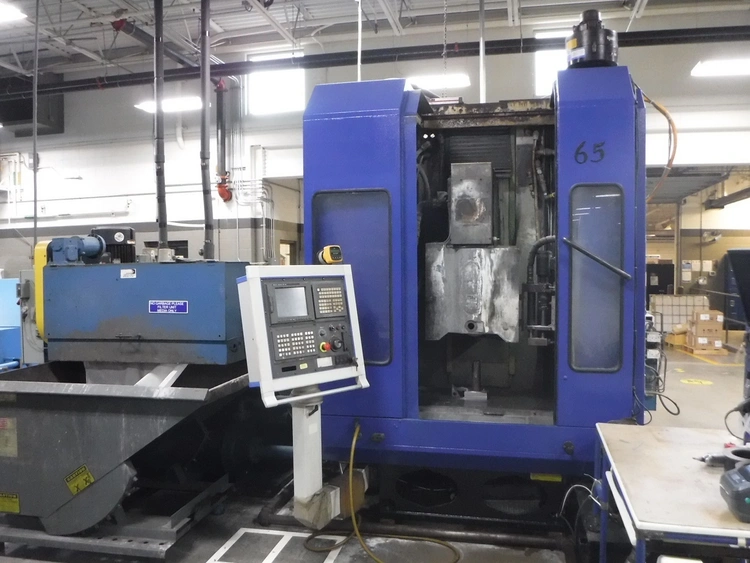

Blohm Profimat MC607 Traveling Column Creep Feed Grinder (2002)

Blohm Profimat MC607 Traveling Column Creep Feed Grinder (2002)

X-Axis travel 27.5"
Y-Axis travel 21.5"
Z-Axis travel 13"
Grinding wheel size 20" x 8" x 8"
Column speed .98 - 984 IPM
Min. automatic wheelhead infeed .00005"
Grinding spindle high precision cartridge type diameter 5.5"
Distance grinding spindle center to diamond roll center 6.25" - 11.25"
Diamond roll motor 12 HP
Max. outside diameter diamond roll 6"
Infeed roll speed .04 - 40 IPM
Spindle speed 45 - 7000 RPM
Spindle motor 80 HP
Equipped With
Fanuc 16 M control (5 axis control) -80 HP - overhead dresser -
Hoffman coolant system
