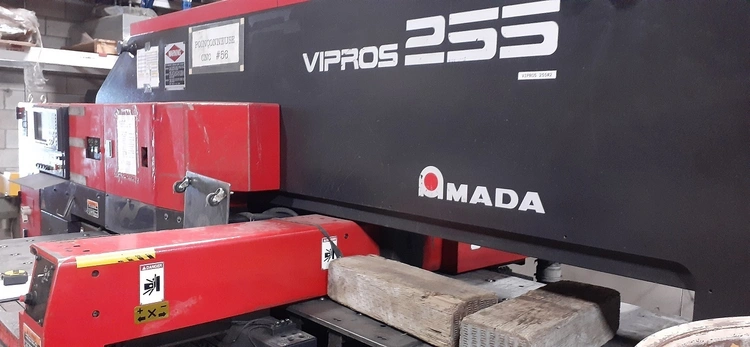

22 ton Amada Vipros 255 22 Ton CNC Turret Punch (2000)

Amada Model Vipros 255 22 Ton CNC Turret Punch Press

Capacity: 22 Ton
Max. Sheet Size with Repositioning: 50" x 100"
Axis Travels: 50" x 50"
Maximum Thickness (Mild Steel): .250"
Turret Configuration: Thick
Number of Stations: 31
Max. Ram Stroke: 1.575"
Linear Positioning Speeds: 2560 IPM (X), 1968 IPM (Y)
Max. Hole Diameter: 3.5"
Hit Rate @ 1" Centers: 340 SPM Capacity: 22 Ton
Max. Sheet Size with Repositioning: 50" x 100"
Axis Travels: 50" x 50"
Maximum Thickness (Mild Steel): .250"
Turret Configuration: Thick
Number of Stations: 31
Max. Ram Stroke: 1.575"
Linear Positioning Speeds: 2560 IPM (X), 1968 IPM (Y)
Max. Hole Diameter: 3.5"
Hit Rate @ 1" Centers: 340 SPM
