2500 watt Mazak Model Spacegear U44 6 Axis CNC Laser Cutter Machine Tool (2007)

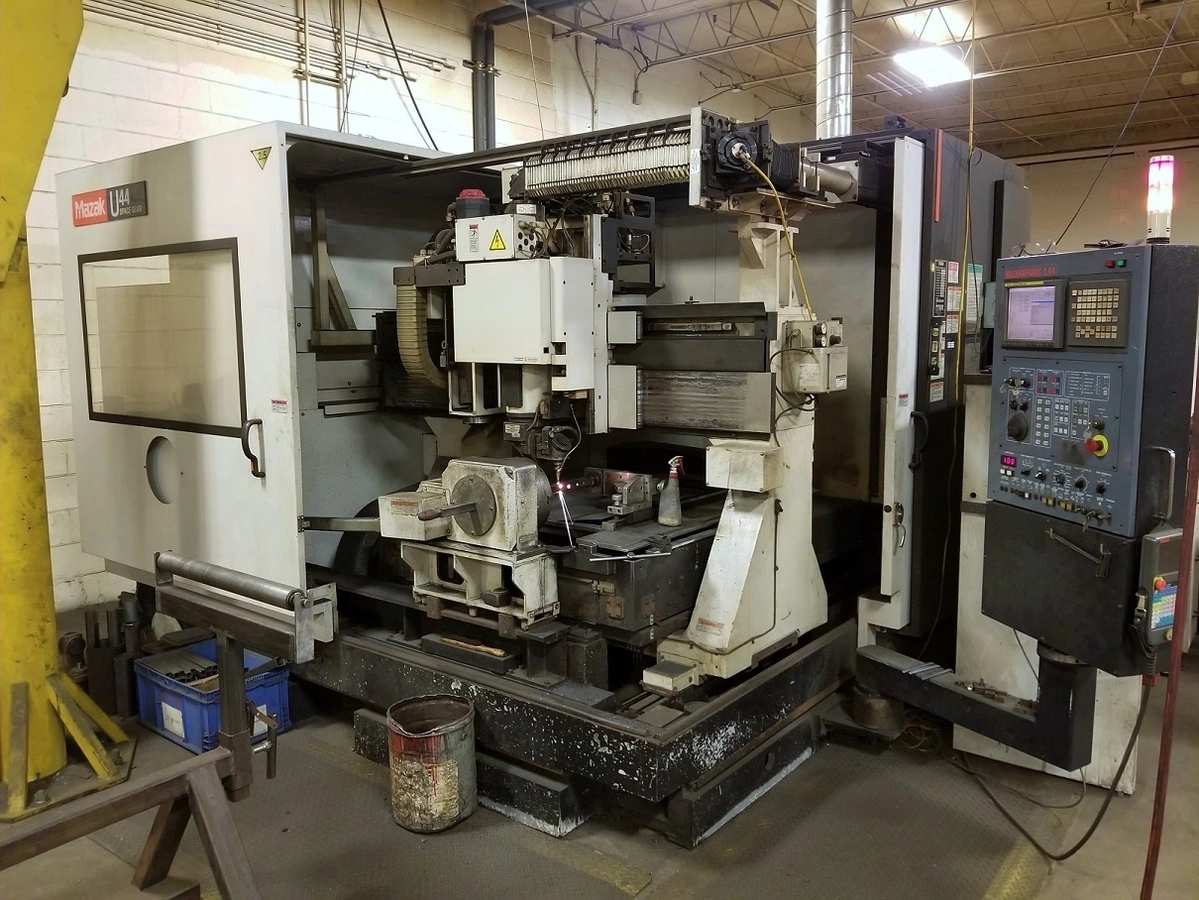

Mazak Model Spacegear U44 6 Axis CNC Laser Cutter Machine Tool
Photo Link
www.assetexchangeinc.com/store/item.asp?ITEM%ID=5793&DEPARTMENT%ID=116
Maximum Wattage: 2500 Watts
Max Cutting Size: 49.21" x 49.21" x .75"
Max. cutting size (3D): 35.43" x 35.43" x 9.64"
Work table height: 35.43"
Max. load weight: 606 lbs
X-Axis Travel: 50"
Y-Axis Travel: 50"
Z-Axis Travel: 16.5"
Axis stroke (effective stroke) A-axis - +/- 360 degrees
Axis stroke (effective stroke) B-axis - +/- 135 degrees
Axis stroke (effective stroke) C-axis - +/- 360 degrees
Rapid traverse rate X,Y,Z: 944.68 IPM
Rapid traverse rate A,B: 9600 degrees/min
Rapid traverse rate C-axis - 12000 degrees/min
Axial drive system - AC servo motor, digital servo drive and ball screw
Automatic lubrication X,Y axes, manual lubrication Z-axis
Positioning accuracy - X, Y axes - +/- 0.0004"/19.68"
Repeatability X,Y,Z axes - +/- 0.0002
Repeatability A,B,C axes - +/- 0.01 degrees
Cutting head W/ 7.5 lenes focal distance - Withstand Pressure 15kg/sq cm
Z-axis profiler - Non-contact capacitance
Max. Cutting Thickness: 7/8"
Flying optics
Table height: 35.43"
Maximum cutting rate is 15 m/min
CPU is 64 bit
Equipped With:
¯
Fanuc L-64 CNC w/10.4" LCD Monitor Mazak FG Cam Software Package/Software
Rotary Table, Rebuilt Resonator 2017 - All Documentation Available For
Review Upon Request
