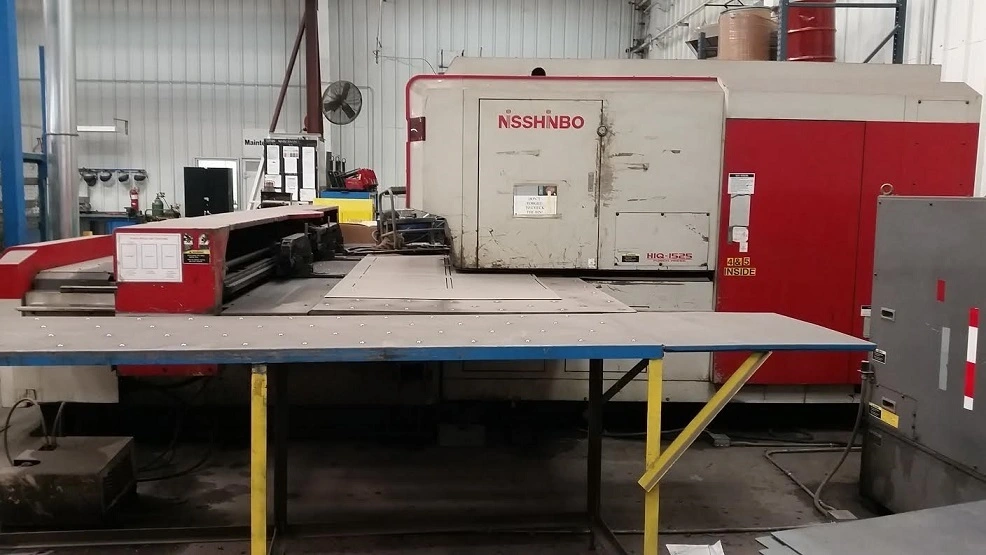

30 Ton Nisshinbo Model HIQ 1525/30 CNC 30 Ton Turret Punch
Have one to sell?
ConditionUsed
1 available
30 Ton, 50" x 100" Capacity, Nisshinbo PAL510T CNC Control
Nisshinbo Model HIQ 1525/30 CNC 30 Ton Turret Punch
Press Type: Hydraulic
Pressing Capacity: 30 Ton
Sheet Size: 1250 x 2500 mm
Ram Stroke: 50mm
Max Thickness: 6.35mm
Max Dia: 100mm
Max Ram Speed: 210mm
Max Work Capacity: 180 Kg
Max Weight: 100 Kg
Table Speed: X 60M/Min, Y 60M/Min
Quick Stop Time: 18ms
Max Stop Time: 57ms
Turret Rotation: 30 RPM
Punch Frequency: 220 ht/min,
Nibbling Frequency: X 450 hit/min, Y Hit/min
Power Consumption: 37KVA
Current Electrical Arrangement: 460V/3/60
Equipped With
Nisshinbo PAL510T CNC Control
